Ab roller arm limit switch 802R no sealed contact B600

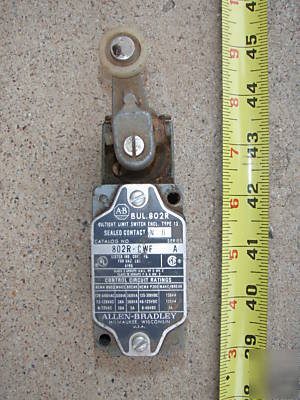

Used and works perfect Allen Bradley Roller Arm Switch
http:// /catalogs/c114/6lim/603237.pdf
This sealed contact limit switch features
a rugged single contact, hermetically
sealed in a glass envelope, that has
excellent contact reliability even in
contaminated atmospheres. The switch
is Programmable Controller compatible
(24 volts and above) and is pilot duty
rated NEMA B600 for AC and NEMA
P300 for DC as shown to the right. The
High contact reliability in contaminated atmospheres Sealed Contact
29 C to +121 C ( 20 F to +250 F)
Exception: Wobble stick and cat whisker devices are rated from
18 C to +54 C (0 F to +130 F )
AC Contact Rating (Maximum per Pole, 50 or 60Hz, Same Polarity)
Carrying Current 5 DC Contact Rating (Maximum per Pole, Same Polarity)
(24V and above) and is pilot duty rated
NEMA B600 for AC and NEMA P300 for
These switches can be equipped with
any one of seven different operating
levers: roller lever, adjustable roller
lever, micrometer adjustment roller
lever, rod lever, one-way rod or roller
lever and fork lever. These can be used
interchangeably on all lever type
Underwriters Laboratories, Inc. for use
and D hazardous locations as defined
by the National Electrical Code.
Bulletin 802R limit switches, except
devices with wobble stick or cat whisker
temperature range of 29 C to +121 C
