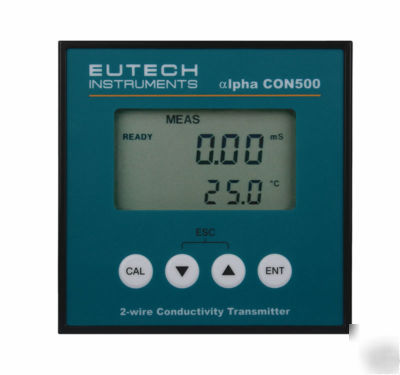

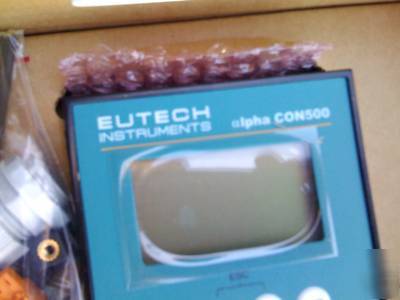

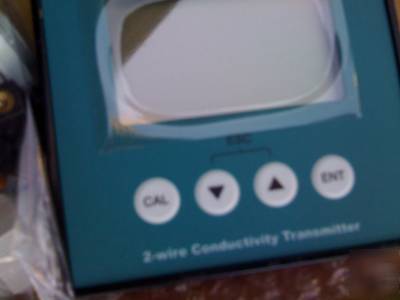

Eutech instruments CON500 conductivity transmitter

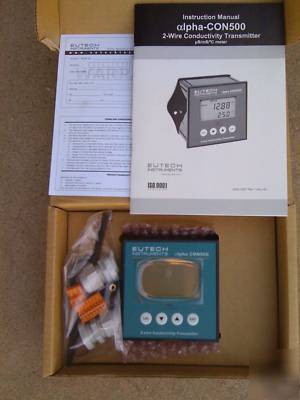

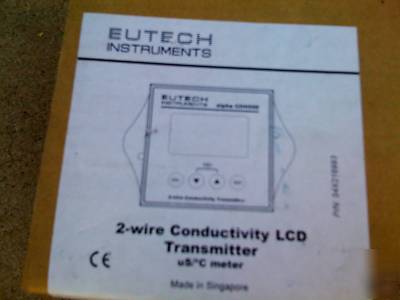

NEW IN BOX THERMO SCIENTIFIC - EUTECH INSTRUMENTS Alpha-CON500 COND 500
alpha-CON500 1/4-DIN 2-Wire Conductivity Transmitter with LCD
Industrial Process Controller & Monitor
This isolated output 4-20mA industrial transmitter is a sturdy microprocessor-based instrument that measures conductivity and temperature and transmits its output via the 2-wire power supply loop. This transmitter has many user-friendly features all of which are completely accessible through the water-resistant membrane keypad.
Ideal for connecting to a PLC for advanced control systems it can also be connected to a recorder for a low-cost documentation system. The instrument's housing is designed with mounting holes for easy installation on plates, poles or walls. Other features include:
* User-Customization through Setup Menu offers flexibility in matching the transmitter s functions to
suit individual s specific requirements
* One-Point Online Calibration without shutting down the line
* Output Current Indicator for Out-of-Range and Hold Conditions to avoid discrepancy in readings
* Scaleable 4 to 20 mA Output for better output resolution for chart recording and other peripheral devices
* Nonvolatile Memory retains all stored parameters and calibration data, even if power fails
* Large Dual Display shows conductivity and temperature simultaneously features clear multiple icons, set points, and status messages
* Panel- or Wall-Mount Weatherproof Housing for outdoor or indoor installation
* DC Power Operation ideal for use in power plants and commercial sites; can be installed in serial loop.
Specifications of alpha-CON500
Auto (Pt 100) (from 0 to 100 C)
Temperature Coefficient Factor Setting
Normalization Temperature Setting
Over- / Under range current output
(Only applicable in the uS range)
OFF Select - 4 mA (under-range) & 20 mA
OFF Select - Last measured current value
Averaging/Stability (READY indicator)
IP65 - Dustproof and protection from low pressure jets of water from all directions.
