Lab crucible box furnace 240 dia x 220 h (mm)

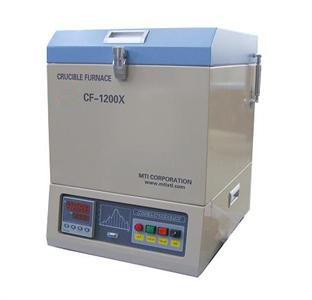

Crucible Box Furnace 240 Dia x 220 H (mm) up to 1200 C with 30 Segements Temperature Controller
* The Crucible Furnace has larger chamber ( 9.5"d x 8.6"H ) and it is designed for sintering ceramic parts and component in Lab and Hobby Shop.
* The crucible furnace has a unique ceramic fiber insulation around the chamber to provide excellent uniformity and energy efficiency.
* The heating element is embedded in the insulation for maximum heat transfer to the chamber. Max. temperature can reach 1200 oC
* Built in precision digital temperature controller is 30 segments programmable to control heating rate, cooling rate and dwell time
* All accessories are included for immediate use
* One pcs refractory disk, which can be put on bottom of furnace to protect furnace liner from wearing
* Three pcs refractory supports , which may be put on top of disk and bottom crucible for adjusting crucible height
* One high temperature gloves using can be used < 900 oC
* Working Temp: 100 - 1200 oC
* Chamber size (mm) : 240 dia. x 220 H ( 9.5"Dia. x 8.6"H )
* Power: single phase 110V AC / 60Hz
* Rise Time: < 60 minutes to 1000 oC ( programmable) - ( 1000oC -1200oC heating rate < 5oC/minute
* Max. Heating Rate: 40oC / minute
* Temperature controller: 30 segments programmable with accuracy +/- 1.0 oC with larger LED digital control panel
* Overall Dimension: 510 x 435 x 425 mm
