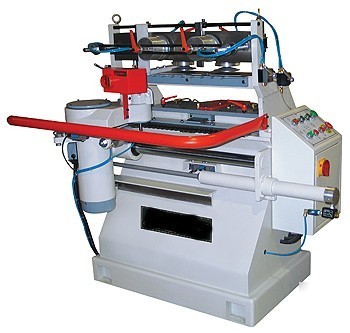

New accura 01075 automatic dovetail machine-dovetailer
ACCURA SINGLE SPINDLE DOVETAILER FOR ENGLISH DOVETAILS
2 HP 3 PHASE 230 VOLT 60 CYCLE
Single Spindle Dovetailer for English Dovetails.
* QUICK ACTION 70 PSI PNEUMATIC CLAMPS!
* DUST COLLECTION SETUP PROVIDED! 4" DIAMETER
Automatic Cycles of 16, 22, 31 dovetails per minute.
Halfblind and Through Dovetails
The automatic lubrication to spindle stroke ensuring smooth motions at all times.
In the event of lack of oil, it alarms automatically.
Lubrication frequency and oil flow are adjustable.
Exclusively designed positioning blocks provide convenient and fast replacement.( patented )
The tenon and mortise depth are individually adjusted.
Adjustment is conveniently made by turning the adjustment screws.
The spindle head is precision constructed to ensure tenon accuracy. 21500 RPM spindle speed creates extremely fine finish on tenon surface. The spindle accommodates 12mm T.C.T. cutter bits. Tenon width can be micrometrically adjusted in 2mm.
Each switch function is clearly indicated by figure for easy identification.
Single cycle or continuous operation can be selected on the control panel.
WORKING LENGTH 200-1500 MM (SINGLE BOARD)
WORKING WIDTH 60-430 MM (SINGLE BOARD)
VERTICAL BOARD THICKNESS 7-60MM
HORIZONTAL BOARD THICKNESS 10-30MM
FEED RATE (3 STEP SPEED) 16T, 22T, 31T
