> Spectra GL522 slope laser w/HL750 ~ or ~ CR600 receiver
Spectra GL522 slope laser w/HL750 ~ or ~ CR600 receiver
or both will fit right in the GL522 Carry Case
Both the GL512 and GL522 include a 2-way, full-function remote control with a built-in back-lit grade display. You can do everything with the remote control that you can do at the laser keypad, up to 330 ft (100 m) away from the laser even from the cab of a machine! The ability to make grade changes from anywhere on the job greatly reduces setup time and speeds operation. Verbal and visual communication errors are eliminated.
The GL512 and 522 Grade Lasers retain all the other advantages of the GL400 series lasers with additional features and benefits.
New wireless communication between the HL750 Laserometer and the transmitters provide automatic Grade Matching. Grade Matching allows measurement of unknown grade values between two points. PlaneLok is also available in both the horizontal and vertical planes. PlaneLok automatically locks the beam on the receiver and keeps it on grade. This eliminates all environmental factors that may induce an error.
Additionally, the HL750 Laserometer works with another HL750 for long range wireless remote display and monitoring.
* Automatic electronic self-leveling provides fast, easy horizontal level, grade, and vertical plumb setup
* Large compensated grade range from -10% to +15%
* Electronic Leveling Vibration Filter dampens vibrations typically experienced on tall tripods, in high winds, or on high vibration jobsites
* No rework due to automatic temperature and grade compensation
* Grade Match displays the existing grade over unknown ground and eliminates time consuming and error prone calculations, time spent searching for grade plans, and over excavating
* PlaneLok automatically locks on to an existing elevation or vertical alignment point which eliminates all drift or possibility of error due to improper calibration or weather
* Very rugged with low service costs; takes a 1 m (3 ft) drop on concrete
* Mask mode eliminates interference with other crews on the jobsite
* General construction leveling such as forms, footers and pads
* Precision placement of concrete for critical specification surfaces over long distance and with laser controlled screeds (Automatic PlaneLok)
* Drift free general construction vertical alignment and plumb for anchor bolt installation, plus form, tilt up and curtain wall plumbing (Automatic PlaneLok)
* General construction grading and excavating
* Sports fields, driveways, ramps and drainage

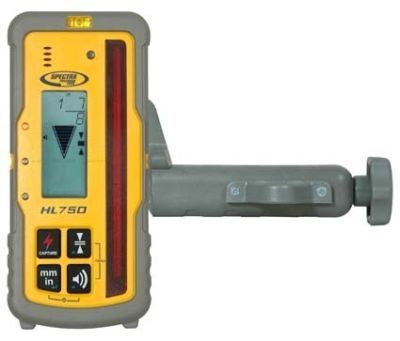

HL750 The Spectra Precision Laser HL750 Laserometer is a highly versatile laser receiver for basic and advanced leveling and aligning applications. It is designed for general, concrete and site preparation contractors. The HL750 measures elevations across the site, and is ideal for use with any rotating transmitter.
The HL750 features a digital readout of elevation that provides a numeric display of 5 cm ( 2 inches). The readout is displayed on the large front and rear LCD's and shows exactly how far the elevation is from on-grade for fast and easy cut/fill readings. Accurate measurements can be made without moving the rod clamp, saving time and increasing productivity. Selectable units of measure can be displayed meeting your application - mm, cm, ft, in or fractional inches.

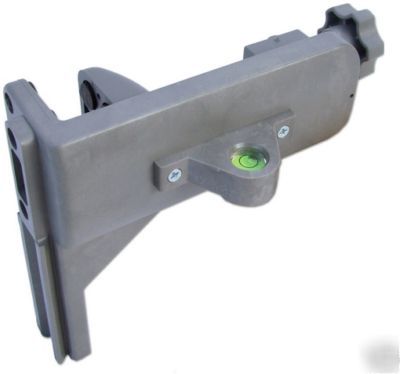

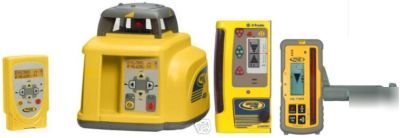

Included in this sale:GL522 Dual-Slope Laser w/integrated 2-way Radio for 'PlaneLok', HL750 Laserometer, C50 Rod Clamp NiMH Recharge Kit, Carrying Case or choice the CR600 in place of the HL750

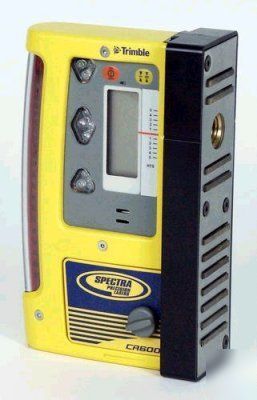

Click Below to see the CR600 specs:
