1 x signal 68-2 transformer 68 vct @ 2A, 115 vac in

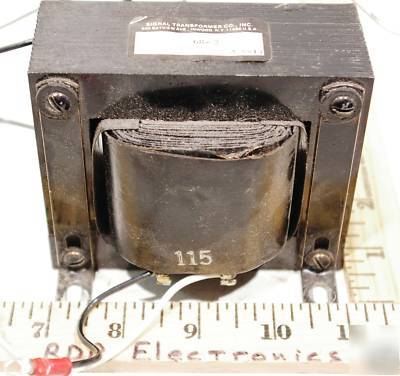

1 x Signal 68-2 Transformer with Dual 34 VCT @ 2A Secondaries & a Single 115 VAC Primary.
In Series you get 68 VCT @ 2A, in Parallel you get 34 VCT @ 4A.
The unit has been Voltage checked and is Good to Go. No Load testing was done.
Approximate dimensions are: 4.125" W x 3.0" D x 3.5" T.
This being an older unit doesn't match up with any current Signal catalog item but
comes closest to this series but with only136 VA and single primary - See link below:
For more detailed information we have provided this link to the Signal Multi-Purpose Int Transformer.
Used in usable physical and electrical condition.
