Hydraulic press built w auto jack pipe & fittings plans

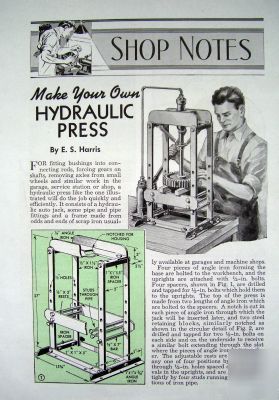

This is an Original 1944 One-Page, two-sided how-to build article / plan that was removed from a vintage magazine. Only one side of the page is shown below, the opposite side has additional drawings and instructions.
Excerpt: "For fitting bushings into connecting rods, forcing gears on shafts, removing axles from small wheels and similar work in the garage, service station or shop, a hydraulic press like the one illustrated will do the job quickly and efficiently. It consists of a hydraulic auto jack, some pipe and pipe fittings and a frame made from odds and ends of scrap iron..."
This table top version is 27" tall, 15 3/4" wide by 12" deep.
