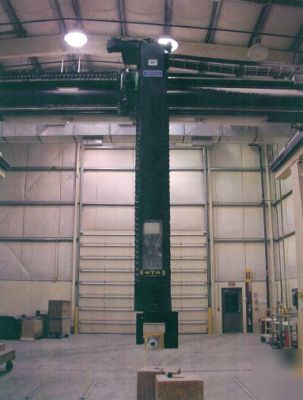

Large 5 axis gantry mill 50 'x x 18' y x 10 'z
PAR-Systems 5 Axis Gantry Mill ( )
Mod: XR225 Serial Number 50308
X-axis................................. 50' (This is a Big machine )
Y-axis................................. 18'
Z-axis................................. 10'
Distance between columns.. 25' inside
Length..................................... 63'
Width....................................... 31.25'
Height...................................... 31.5'
High frequency speed controller
Voltage.................................... 67-350
Amps...................................... 27
Horse power............................ 16
RPM........................................ 3000 to 18000
Auxiliary spindle, spare motors, motor drives, gear boxes, and assortment of other spare parts.
Each of the mechanical components consists of structure steel (gear stock, linear railing and gear boxes).

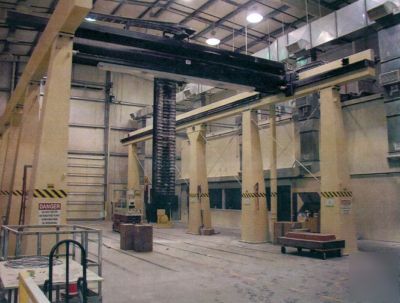

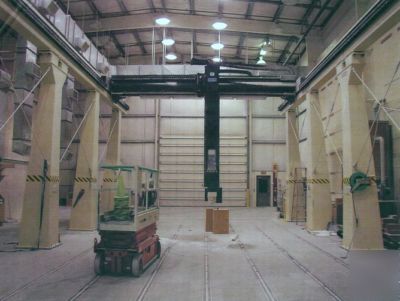

We currently have the machine installed in our Salt Lake City Warehouse to demo it under power.
Machine software and drives where upgraded in Sept 2003 by Par, (machine new in 2000)
Machine can be seen under power in our Warehouse, Machine has had very limited use,

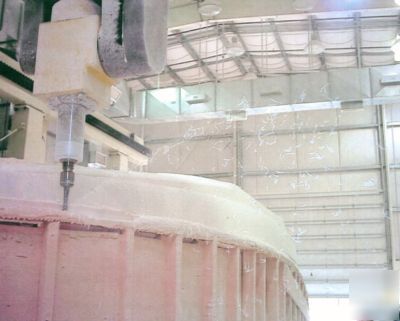

Machine can be used to make large molds,or Trim , (Composite, Boat , Aerospace)
to see small Video of machine see:
http:// /watch?v=VqGXQ8RnVCk
