> New kipor KDE7600T industrial generator electric

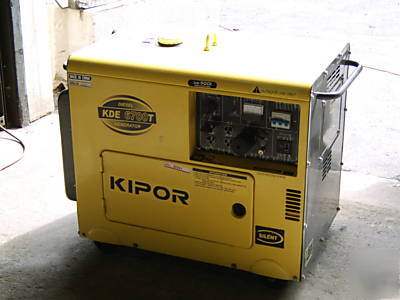

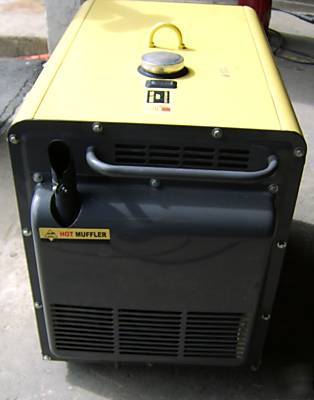

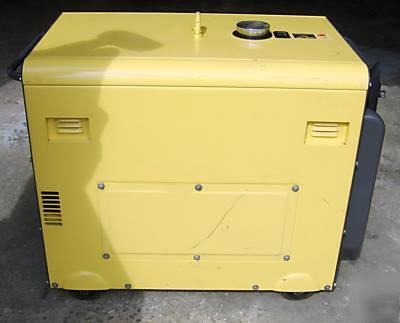

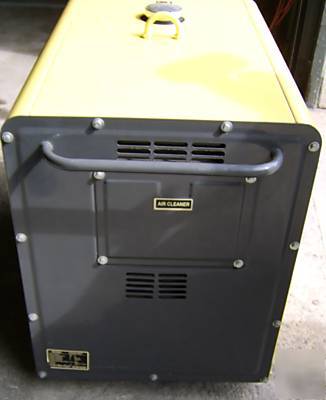

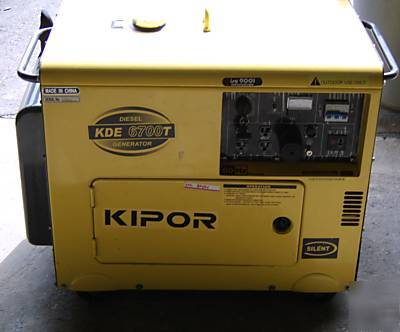

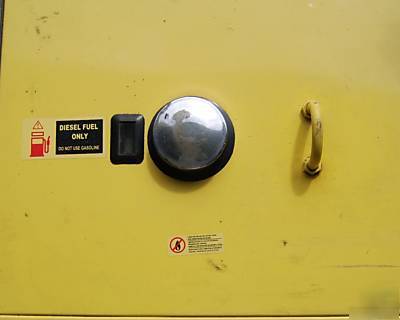

New kipor KDE7600T industrial generator electric
In comparison to more conventional models the Kipor KDE 6700 T runs maintaining low noise levels. Is said to be one of the best serllers in its class, the lightweight design makes movement easier than equivalent models. Machine comes with
two 3-pin round blue 16amp 230v sockets and a low oil level automatic shut off feature.
*A new AVR(Automatic Voltage Regulator)delivers non-fluctuating power.
*Electric starter ensures easy starting.
*Low oil pressure alert system shuts down the engine automatically.
*Enclosed structure brings quieter operation for the owner.
*Auto depression unit ensures quick starting

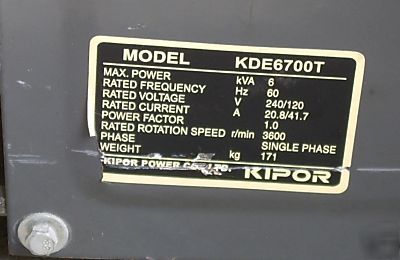

Rated voltage (V) 115/230 120/240
Rated current (A) 39.2/19.6 41.7/20.8
Rated speed (r/min ) 3000 3600
Excitation mode Brushiess Self-excitation(AVR)

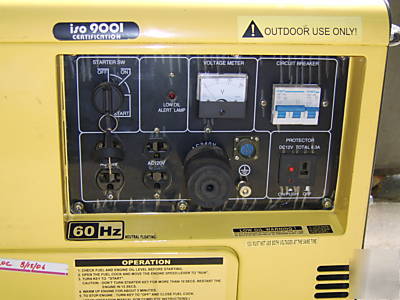

panel type T:General Panel TA:Digital Panel
Output Connection pole Without
T:Connection pole output TA:DC
Working assorting weight(Kg) 193
Single-cylinder,vertical,four-stroke,direct
Cylinder NO,-bore stroke(mm) 1-86 72
Rated power[kW(Hp)/(r/min)] 5.7/3000 6.3/3600
Rated rotation speed 3000 3600
Lubrication system Pressure splash
Starting system Electric starter
Lube oil Brand CDgrade or SAE10W-30,15W-40
Capacity of cooling Water(L) Without
Starting motor capacity (V-kW) 12V 0.8kW
Battery capacity(V-Ah) 12V 36Ah
Fuel consumption (g/kW h) 275.1 281.5
Continuous running time (hr) 9.5
