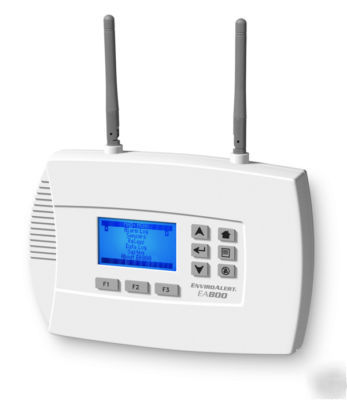

Winland EA800 8-zone temp water humid keypad wireless
Monitor up to eight sensors (4 wireless, 4 hardwired) for temperature, humidity, water detection, and industrial measurements suach as pressure or flow. With a designated relay output for each sensor, the EnviroAlert EA800 will activate alarms, dialers or transmitters when programmed limits have been exceeded.
* Datalogging - capture and download sensor readings, alarm and event history
* Simultaneous operation of eight sensors
* Defrost time delay up to 120 minutes
* Easy to read large LCD display
* Auxiliary output relay for local audible alarm
* Auxiliary alarm silence feature with 10 minute timer
* Snap fit mounting base with main housing for easy access
* Plug in terminal strip connectors for easier wire termination
* Sensors readings are displayed on home screen
* Zone configuration retained in memory if power is lost
* Dimensions: 20.6 cm x 14.0 cm x 4.9 cm
* Low & High Limit Adjust Range:
Temperature: -80 to +150 C
Humidity: 5% to 95% Relative Humidity
* Power: +11 to +26 VDC @ <501mA
* Unit Operating Range: 0 to 50 C
* Alarm Outputs: 8 - Form C Relays (configurable) - Max 30 VDC @ 1 amp resistive
* Auxiliary Alarm Output: 1 - Form C Relays (configurable) - Max 30 VDC @ 1 amp resistive
* Piezo Buzzer Duration: Continuous
* Piezo Buzzer Sound Level: 88 dBA @ 10 cm
