Amplifier radio signal tracer injector repair K7000 kit
AMPLIFIER RADIO SIGNAL TRACER INJECTOR REPAIR K7000 KIT

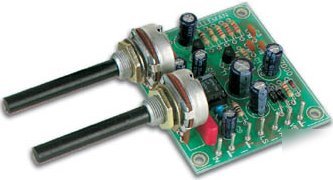

Velleman K7000 Signal Tracer Injector Kit.
The signal injector circuit is separate from the signal tracing circuit. You can trace an existing signal and inject a signal to be traced, allowing for quick isolation of the defective part of the amplifier or radio. This will operate as a signal injector and signal tracer at the same time.
SIGNAL TRACER/INJECTOR. This signal tracer / injector has been designed to inject or detect a specific signal into an audio circuit in need of repair (such as amplifiers, radios, tone controls, ...) so as to detect the fault. In this way problems can be traced more easily. The signal tracer may also be used as a simple monitor or amplifier.
Independent injector / tracer Injector - 0-2.5Vrms output (adjustable)
sensitivity (adjustable), gain: 40dB
Power required: 7-9VAC or 9-12VDC / 150mA
You can use the signal injector and the signal tracer at the same time.
