Bird 4421 multifunction rf power meter wattmeter watt

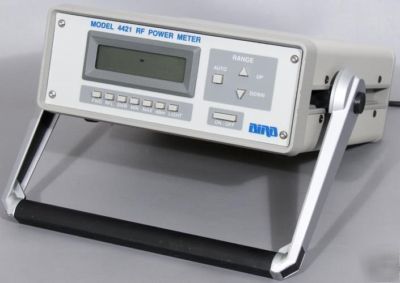

Bird 4421-101 Multifunction RF Power Meter
List Price is: $2904.00 NEW from Bird
Serial Number: (To Be Determined)
Link to the Manual: Bird 4421 RF Power Meter & 4020 Series Sensor Manual
* Precision Power Meter for Semiconductor Processing Applications
* Computer Interface - RS-232 and IEEE-488 standard (not included)
Power Range: 100 mW to 25 kW FS
Frequency Range: 100 KHz-1 GHz
Functions: Forward and reflected power in W or dBm, VSWR, return loss in dB and min./max. values
Over range: Audible warning when RF power input exceeds 120% of sensor's maximum power range
Indication Display: 3-1/2 digit-liquid crystal display with indicator for mode, measurement units, battery condition, programming status, and trend arrows. Switchable backlight.
Operating Power: 115/230 VAC, 50/60 Hz or 8 nickel cadmium 1.2 V cells (NEDA type 10014)
Nominal Size LxWxH [inches (mm)]: 12-9/32 x 12-5/32 x 4-1/4 (312 x 309 x 108 mm) with handle extended 15 7/16 L (392 mm)
Interconnects: 1 meter latch-n-lock coiled cable
Interfaces: Optional field-installable IEEE-488 (PN:4421-488) or RS-232 serial interface (PN:4421-232) - not included!.
