> Brainchild VR06 paperless recorder
Brainchild VR06 paperless recorder

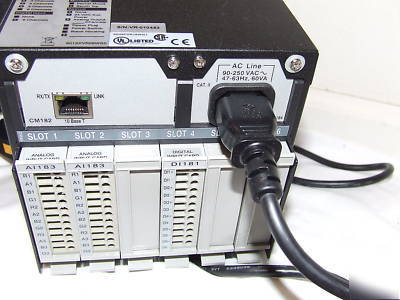

Cards included: 2-each AI183, 1-each DI183
User Manual: http://www.cascade.net/.%5CBrainchild%5Cvr06/VR06_User_Manual.pdf

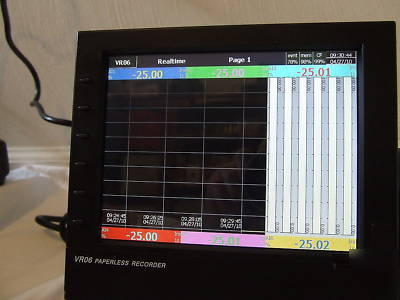

It is the Low Cost paperless recorder in bigger size 6.4" with highest resolution 640x480 pixels VGA TFT display, infrared detector, maximum 6 channels, plug & play I/O cards. It has many other unique features too, 12 soft keys for easy operation, universal input, the shortest depth 174mm, well designed portable handle, fully isolated channels, reliable and high capacity storage media CF card.

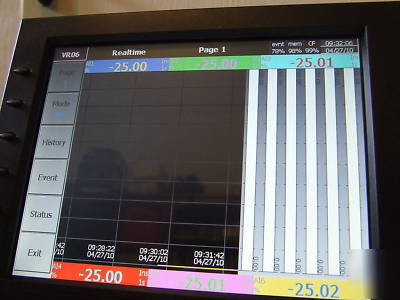

6.4"Color TFT LCD with 640X480 pixels resolution
6 isolated analog input channels
Plug & Play Supported I / O card, 6 Slots
Expandable modular architecture
Soft keys coupled with interactive dialog simplify
Easy - to - access function keys
Shut off LCD automatically to prolong LCD life
and save power while nobody near by
Only 174 mm (6.9") depth behind panel
Vertical trend , Horizontal trend,
Standard Ethernet and optional RS-232 / 422 / 485
18 - bit A -D analog input, 15-bit D-A analog output.
Within 200 msec for all channels,
Programmable Filter or Moving Average Sampling Method
Statistics with Instant , Average , Min./ Max. Values
Progammable Alarms and Messages available

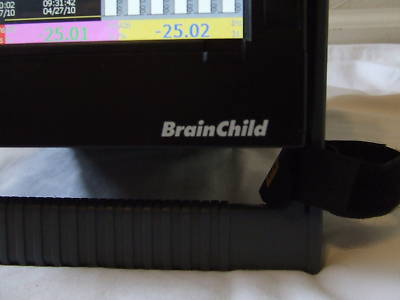

Portable / Bench Top Assembly Kit available
90-250VAC, 47-63Hz, 60VA, 30W maximum
11-18VDC or 18-36 VDC, 60VA, 30W maximum
6.4 TFT LCD, 640X480 pixel resolution, 256 colors
Storage media: 128, 512 MB, 1 GB CF (Compact Flash) cards
Analog Input Cards (AI181, AI182, AI183)
Channels: AI181 ~ 1 channel, AI182 ~ 2 channels, AI183 ~ 3 channels
Sampling Rate: 5 times/ second
Maximum Rating: -2 VDC minimum, 12 VDC maximum (1 minute for mA input)
Temperature Effect: 1.5 V/ C for all inputs except mA 3.0 V/ C for mA input
Sensor Lead Resistance Effect:
3-wire RTD: 2.6 C /ohm of resistance difference of two leads
2-wire RTD: 2.6 C /ohm of resistance sum of two leads
Common Mode Rejection Ratio (CMRR): 120dB
Normal Mode Rejection Ratio (NMRR): 55dB
Isolation Breakdown Voltage between channels: 430VAC min.
Sensor opened for TC, RTD and mV inputs,
below 1 mA for 4-20mA input, below 0.25V for 1-5V inputs,
Within 10 seconds for TC, RTD and mV inputs,
0.1 second for 4-20 mA and 1-5V inputs.
Low: -5V minimum, 0.8V maximum
Logic High: 2V minimum, 5V maximum
External pull-down Resistance: 1K maximum
External pull-up Resistance: 1.5M minimum
Relay Rating: 5A/240 VAC, life cycles 200,000 for resistive load
Analog Output Card (AO183I, AO183V)
Channels: 3 per card Output signal: AO183I: 4-20mA, 0-20mA, AO183V: 0-5V, 1-5V, 0-10V
Accuracy: 0.05% of Span 0.0025% / C
Load Resistance: 0-500 ohms (current), 10K ohms minimum (voltage)
Output Regulation: 0.01% for full load change
Output Setting Time: 0.1 second (stable to 99.9%)
Isolation Breakdown Voltage: 1000VAC min.
Integral Linearity Error: 0.005% of Span
Temperature Effect: 0.0025% of Span / C
24VDC Auxiliary Power Supply Card (AP181)
Channels: to be used for 6 transmitters
Output Rating: 24 1 VDC, 180mA in maximum, 30mA / each channel
Interface: RS-232 (1 unit), RS-485 or RS-422 (up to 247 units)
Protocol: Modbus Protocol RTU mode
Baud Rate: 0.3~38.4 Kbits/sec.
Measured data Bits: 7 or 8 bits
Standard Ethernet Communication
Protocol: Modbus TCP/IP, 10 Base T
Ports: AUI (Attachment Unit Interface) and RJ-45, Auto- detect capability
Distance: Detect moving human body in distance around 2 meters
Time delayed: 10, 20, 30, 40, 50 or 60 minutes to be defined
Real time clock accuracy vs. temperature inside of housing
Temperature inside housing typical error per month
Operating Temperature: 5 ~ 50 C
Storage Temperature: -25 ~ 60 C
Humidity: 20 to 80% RH (non-condensing), maximum relative humidity 80% for temperature up to 31 C decreasing linearly to 50% relative humidity at 40 C
Insulation Resistance: 20 M ohms min. (at 500 VDC)
Dielectric Strength: 1350 VAC, 50/60 Hz for 1 minute
Vibration Resistance: 10-55 Hz, 10m/ s2for 2 hours
Shock Resistance: 30m/ s2(3g) for operation, 100g for transportation
Operation Position: no inclined restriction
Dimensions: Panel Mount style: 166(W) x 144(H) x 174mm(D)
Bench Top style: 166 (W) x 192 (H) x 194mm (D)
Standard Panel Cutout: DIN size in 138 x 138mm
4: 4 channels with AI181 & AI183
5: 5 channels with AI182 & AI183
*See AI181/2/3(V) in Accessories below.
0: standard Ethernet interface
1: RS-232/422/485 ( three in one ) + Ethernet interface
1: Free basic software Observer I for non-communication application
2: Extensive software Observer II for communication of RS-232/422/485 or Ethernet
1: with Mathematics, Counter & Totalizer & FDA 21 CFR part 11 compliance
4: standard panel mounting, black case
5: Bench top / portable style with handle, USA power cable, black case
6: Bench top with handle, European power cable, black case
1: 24VDC auxiliary power supply ( for transmitter, 6 channels )
5: panel mounting with rear power plug
6: panel mounting with front power switch
