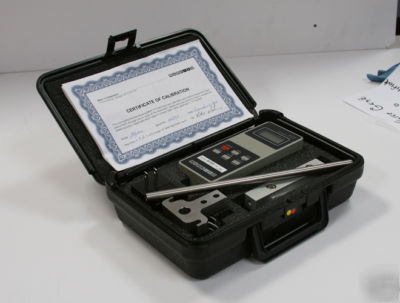

Mark-10 BG500 force gauge w/certificate
Series BG Digital Force Gauge is an advanced force measurement solution, with sophisticated measurement capabilities, data outputs, computer control capabilities, and a long list of features and configurable settings. The BG can stop motorized test stand travel at user-selectable set points, and can also prevent force overload (when used with the ESM motorized test stand). Go / no go testing can also be accomplished with an optional plug-in hi / lo limits indicator.
Compatible with all Mark-10 test stands and grips. RS-232, Mitutoyo and analog outputs GCL-Gauge Control Language for full computer control Automatic timed output on RS-232 Dual set points with outputs Averaging mode for average readings over time External trigger for contact or switch testing and data capture General purpose I/O for external device control Programmable analog and digital filters Selectable units of measurement Programmable default configuration Peak memory for tensile and compressive forces Push-button calibration Battery or AC operation Programmable automatic shutoff Reversible aluminum housing for handheld use or test stand mounting (see below) Same housing size for all capacities Accuracy: 0.2% of full scale 1 digit Sampling rate: 65 readings/sec Safe overload: 150% of capacity Battery life: 8-10 hours per charge Weight: 0.9 lbs (0.4 kg) Environmental requirements: 40 F - 100 F [5 C - 45 C], <96% humidity (non-condensating) CE mark
