Merrimac pdm-20-250 10-500 mhz 2-way power divider sma

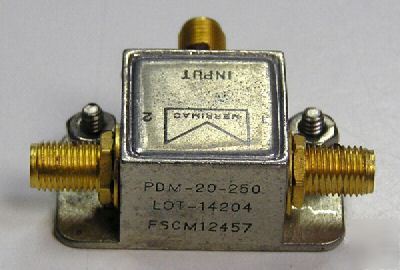

Merrimac model PDM-20-250 is a lumped element design power divider with SMA connectors.
Isolation: 30 dB min, 32 dB typical
Insertion Loss: 0.5 dB Max, 0.4 dB typical (10-400 MHz); 0.6 dB Max, 0.5 dB typical (10-500 MHz)
Phase Balance: 2 Max, 1 typical
Amplitude Balance: 0.2 Max, 0.1 typical
VSWR: 1.31:1 (In), 1.2:1 (Out)
Input Power (avg into matched loads): 3W Max.
Internal Load Dissipation: 250 mW max.
