Flowtronex itt irrigation pump station

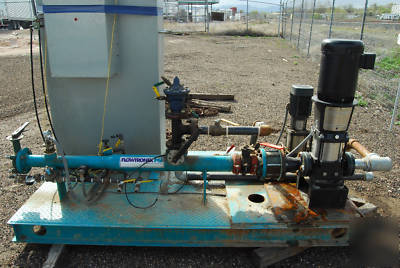

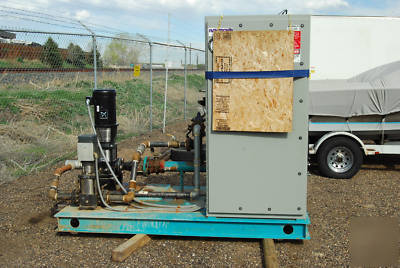

For Sale: 1992 Flowtronex Pump Station FPX-VWTP-360-2-95

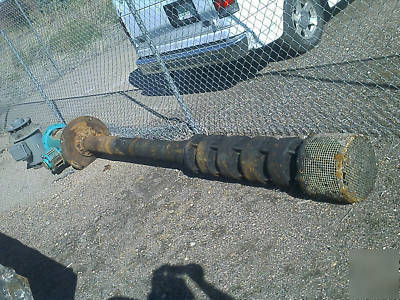

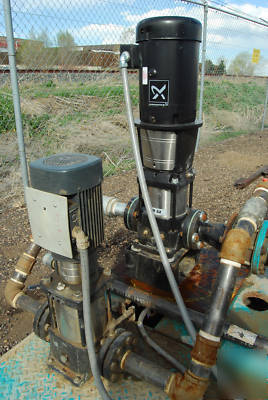

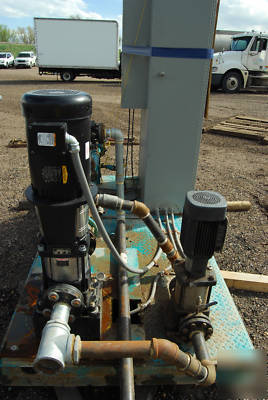

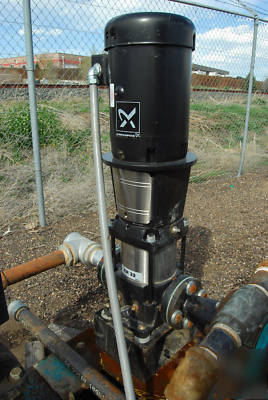

The 30 HP Main Vertical Turbine Pump and motor were working when removed last fall for inspection of wet well. The wet well failed inspection and entire pump station building had to replaced. This spring the station was retrofitted with a new Grundfos 8 HP CR-32 pump and setup as a horizontal temporary station while the new building and new pump station was being constructed and installed.

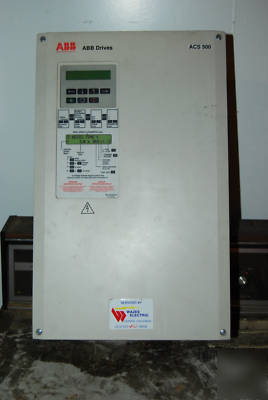

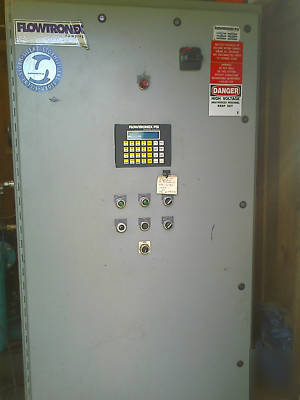

Operation: Pump ramps up slowly via VFD to pressure set point (which is adjustable). Pump maintains flow at pressure set point and adjusts motor speed to match flow demand as needed. If there is no flow after 2 minutes (adjustable), main pump stops. If pressure drops below 4 psi (adjustable) from pressure set point the Grundfos 4 HP CR-16 primer pump replaces water until pressure set point is reached. If demand is large and pressure drops below 6 psi (adjustable) from pressure set point, main pump ramps up and process starts over. Many parameters are adjustable. Operation manual included. ABB ACS 500 Variable frequency drive is included if original 30hp motor and pump is to be reinstalled.
