> AD7524JP ic dac 8BIT multiplying 20-plcc lot of 3

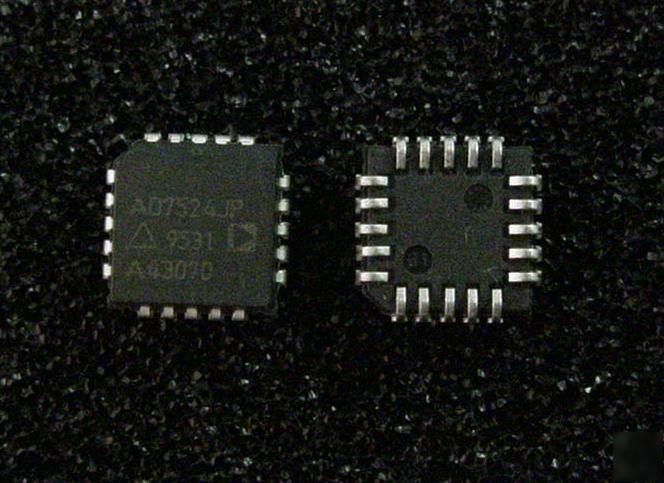

AD7524JP ic dac 8BIT multiplying 20-plcc lot of 3
AD7524JP CMOS 8-Bit Buffered Multiplying DAC by Analog Devices
GENERAL DESCRIPTION: The AD7524 is a low cost, 8-bit monolithic CMOS DAC designed for direct interface to most microprocessors.
Basically an 8-bit DAC with input latches, the AD7524 s load cycle is similar to the write cycle of a random access memory. Using an advanced thin-film on CMOS fabrication process, the AD7524 provides accuracy to 1/8 LSB with a typical power dissipation of less than 10 milliwatts.
A newly improved design eliminates the protection Schottky previously required and guarantees TTL compatibility when using a +5V supply. Loading speed has been increased for compatibility with most microprocessors.
Featuring operation from +5V to +15V, the AD7524 interfaces directly to most microprocessor buses or output ports.
Excellent multiplying characteristics (2- or 4-quadrant) make the AD7524 an ideal choice for many microprocessor controlled gain setting and signal control applications.
* Microprocessor Compatible (6800, 8085, Z80, etc.)
* TTL/CMOS Compatible Inputs
* Monotonicity Guaranteed (Full Temperature Range)
* Latch Free (No Protection Schottky Required)
* Microprocessor Controlled Gain Circuits
* Microprocessor Controlled Attenuator Circuits
* Microprocessor Controlled Function Generation
* Bus Structured Instruments
Pricing is for LOT of 3 parts.
