Motion controls d-49SENC sl 1.25 tie rod cylinder

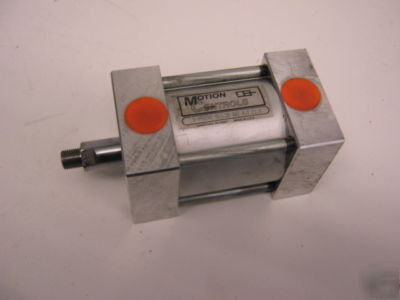

MOTION CONTROLS D-49SENC SL 1.25 TIE ROD CYLINDER
APPROX WEIGHT PER INCH STROKE : .5
A specially compounded reinforced Teflon material is used for the piston and rod bearings, assuring low friction characteristics. Bearing assembly is easily removed for quick replacement.
Long life D cylinders are specifically designed for non-lube operation
High energy absorption poppet style adjustable cushions are available as a standard option. Cushion adjusting screw is normally located in position number 4.
Hard chrome plated steel, ground and polished. Two wrench flats standard on all bore sizes. Full male national coarse threads are standard. All other threads available as options.
Hard coated I.D. aluminum for corrosion resistance and low friction.
Machined high strength aluminum alloy.
250 psi. air or "non-shock" hydraulic.
Operating temperature range from a minimum of 10 F (-12 C) to a maximum of 200 F (93 C).
Cushions: Popper cushions can be specified for either or both ends of the Series "D" cylinder. Standard cushion length is one inch, with optional lengths of two, four, and six inches.
