Nsk nakanishi high power air motor spindle amx-6503BH

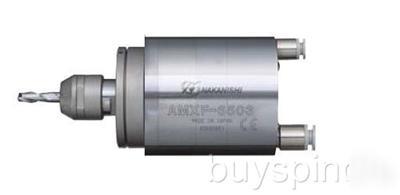

Nsk Nakanishi High Power Air Motor Spindle AMX-6503BH
ULTRA PRECISION HIGH POWER AIR MOTOR SPINDLE AMX-6503BH 2.56" (65mm) 2,800 min-1(rpm)
The AMX series is a new air motor/spindle its small body incorporates a high torque air motor that allows for large diameter tool machining in very tight locations.
AMX-65 series has 3 speeds available 7,700 min-1(rpm)(46 cN m), 1/1 ratio, 2,800 min-1(rpm)(170 cN m), 1/3 ratio, and 920 min-1(rpm)(410 cN m), 1/9 ratio.
This short body, high torque motor/spindle uses a 125W air motor. The system is perfect for mounting on turret lathes, CNC gang tool lathes, special purpose machines and any other place you need high power and high torque in a small body.
Intake Air Hose (K-215) : 6 mm x 6 ft
Exhaust Air Hose (K-256) : 8 mm x 3.94"
Collet Nut (CHN-L) : Provided
Wrench (15 x 17) , (22 x 27) : 1 pc. each
AMX-6503BH Air Motor Spindle Specifications
Intake Air Hose 6.0 mm (O.D.)
AMX-65 Series (1/3 Ratio) 2,800 min-1(rpm)
End Mill Capacity 0.098" (*1)
Ideal for use on NC machines.
Short Body, High Torque, High-Precision machining spindles.
Perfect for Robotic applications, the short body makes it extremely adaptable. AMXL Series-light type weighs only 60-70% as much as the normal series making it perfect for small robots.
Easily convert a single purpose machine into a multi-purpose machine. Enhance the capabilities of existing equipment.
Simple installation, just supply lubricated air.
Wide variety of configurations in the same diameter, so you can easily interchange between high speed and high torque spindles with the same holder.
For space restricted installations there are different air input and exhaust configurations.
Flange type air motor/spindle makes mounting very easy.
AMX series mounted on special purpose machine.
Application Examples of AMX Series
The AMX series uses a vane type air motor coupled with an integral geared speed reducer/torque multiplier and high precision spindle in a single space saving body.
This small body spindle series is capable of delivering high speeds or high torque. It is available in 3 diameters, 1.97"( 50 mm), 2.56"( 65 mm), 3.15"( 80 mm) and 3 motor/reducer configurations, 1/1, 1/3, 1/9 for a total of 24 different types to choose from. There are also different body styles, air configurations and mounting styles, making the application possibilities almost limitless. These spindles are ideal for high-precision milling, drilling, slitting and grinding.
Please use an Air Line Kit, such as NAKANISHI's AL-0304 or AL-951 with these motor spindles
3 Types of Motor/Spindle bodies to choose from. (Optional)
AMX-Straight Body Standard Type
The outside body is made from precision ground, Stainless Steel SUS416.
The outside body is made from precision ground Aluminum to make it lightweight and perfect for robotic applications.
The body is made from precision ground Stainless Steel SUS416 and incorporates a flange for easy 2 bolt mounting.
The AMX series is equipped a rear air intake and remote exhaust configuration.
