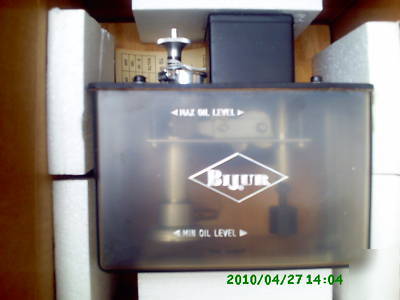

Bijur-tm-5 automatic cyclic pump-110V/ 1.5 liter reserv
Lubricator is a motor-driven piston pump spring discharge type. Pump cycle time is controlled by an integral gear reduction in the motor. Lubricator can be actuated manually by raising and releasing the instant feed button. Available cycle times are shown in the table below.
Continuous duty, single phase, synchronous induction timing motor for 50/60 Hz, dual wound for 115/230 VAC. Power consumption is 3 watts. For correct wiring, see instruction tag attached to lubricator.
Bijur reserves the right to change motor size, mounting dimensions, and/or manufacturer.
Models of this lubricator equipped with liquid level switch are listed in the
How to Order chart on page 3. They are supplied so the switch will close an electrical circuit whenever the oil in the reservoir is above the minimum operating level. Thus, when connected to a light or other indicating device, the liquid level can be monitored.
When the float is reversed, the switch will close an electrical circuit whenever the oil level is below the minimum operating level.
