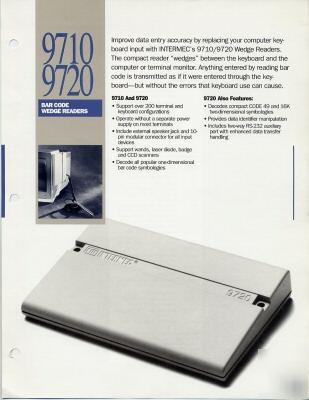

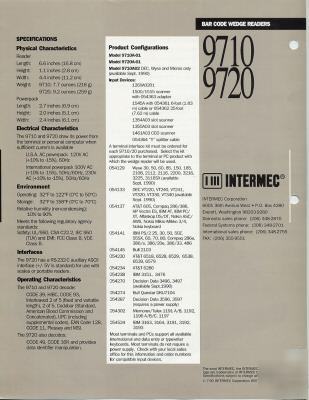

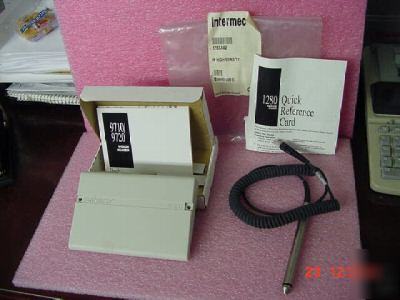

> Intermec 9720 FO1 bar code wedge reader & 1283A02 pen
Intermec 9720 FO1 bar code wedge reader & 1283A02 pen
The BarPen 1280 series wands are a great choice for an economical, lightweight and rugged input device. Each wand has a smooth, long-lasting synthetic sapphire tip in a rugged stainless steel body that resists liquids, dusts and dirt. You can choose from either visible light or infrared wands to suit your needs. The BarPen wands are ideal for all applications; from sterile environments to the dirt and dust that you may find in industrial and manufacturing sites. The BarPen wand with its steel barrel will stand up to the abuse and give many years of uninterrupted use. View Barpen 128X General Visible light and infrared wand. Most economical bar code input device. Physical Characteristics Length: 19.1 cm Diameter: 1.3 cm Weight: 100g with standard 8' coiled cable Optical System 1280, 1281, 1282: 660 nm 1283, 1284: 880 nm Environment Operating Temperature: -23 to 50 C Storage Temperature: -40 to 70 C Humidity: Non-condensing (0 to 95%) Operating Current 35 mA nominal at 4.5 to 5.5V: 1280 16 mA nominal at 4.3 to 6.0V: 1281, 1282, 1283 & 1284 Operating Characteristics: 1280 - Visible light source, Bar Code Density -5 to 7 mils 1281 - Visible light source, Bar Code Density -7 to 12 mils 1282 - Visible light source, Bar Code Density -12 to 40 mils 1283 - Infrared light source, Bar Code Density -7 to 12 mils 1286 - Infrared light source, Bar Code Density -5 to 7 mils Scan Velocity 1280/1286: 5 to 76 cm per second at 5 mils 1281 - 1283: 5 to 127 cm per second at 10 mils Configurations 1280A Visible Light Wand (5-7 mils) 1280A01: Ultra high resolution, 6 pin connection with 8' cable 1280A02: Ultra high resolution, 10 pin connection with 8' cable 1281A Visible Light Wand (7-12 mils) 1281A01: High resolution, 6 pin connection with 8' cable 1281A21: High resolution, 6 pin connection with 20' cable 1281A02: High resolution, 10 pin connection with 8' cable 1281A22: High resolution, 10 pin connection with 20' cable 1282A Visible Light Wand (12-40 mils) 1282A01: Low resolution, 6 pin connection with 8' cable 1286A Ultra high resolution of scanning over lament (5-12 mils) 1286A01: 6 pin connection with 8' cable 1286A02: 10 pin connection with 8' cable 1283A Infrared Wand (7-12 mils) 1283A01: High resolution, 6 pin connection with 8' cable 1283A02: High resolution, 10 pin connection with 8' cable 6-pin connection refers to 94XX & 95XX 10-pin connection refers to 97XX, JANUS & ANTARES Read Angle 1280/1286: 10 to 30 1281-1283: 0 to 35 Depth of Field 1280/1286: 0.25 to 1.00 mm at 5 mils 1281-1283: 0 to 1.6mm at 7.0 mils and upwards Approvals FCC Part 15, ICES-003 Class B, EN 55022, CISPR
