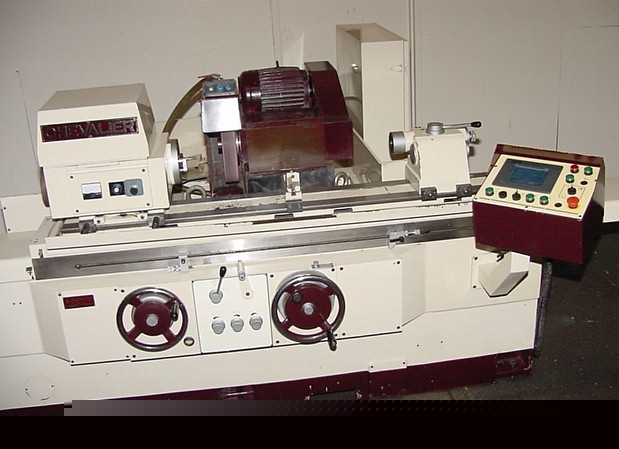

Late 12" x 40" chevalier univ od cylindrical grinder
LATE 12" X 40" CHEVALIER UNIV OD CYLINDRICAL GRINDER
12" X 40" CHEVALIER UNIVERSAL CYLINDRICAL GRINDER
MODEL CG-1240A S/N: GF49902 NEW 1999
SWING:.................................. 12.6"
CENTER DISTANCE:........................ 9.3"
MAX. WEIGHT BETWEEN CENTERS:............ 330 LBS
TABLE SWIVEL:........................... 3 DEG.
- DRIVE MOTOR:.......................... 5 HP
- GRINDING WHEEL:....................... 14"D X 1.75"W
- WHEEL SPEED:.......................... 1650 RPM
- SWIVEL:............................... 30 DEG
- TRAVEL - MANUAL:...................... 6.3"
- PLUNGE:...................... 1.57"
- MIN. INFEED INCREMENT (ROUGH/FINE):... .0002"/.00004"
- AUTO INFEED INCR.:.................... .0001" - .09"
- TABLE SPEED:.......................... 2 - 118 IPM
- SPINDLE TAPER:........................ MT 4
- SWIVEL:............................... 120 DEG.
- SPEEDS - INF VARIABLE:................ 25 - 350 RPM
- MOTOR:................................ 1 HP
- TAPER:................................ MT 4
- QUILL TRAVEL:......................... 1"
APPROX DIMS:............................ 177"L X 70"W X 60"H
APPROX. WEIGHT:......................... 7000 LBS
