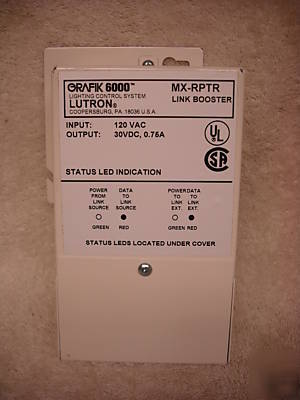

Lutron grafik link booster #mx-rptr-100/120
The MX-RPTR Link Booster allows Control Station/Wallstation Links and Power Panel Links in GRAFIK 5000/6000/7000 Systems to be extended beyond their normal maximum distances.* It is also used to increase the power if a large number of wallstations are used. The link booster can also be used with XPS and LCP Systems.
1. The booster must be located within 2000 ft. of the Processor Panel.
2. The link may be extended 2000 ft. for every MX-RPTR added to the link (maximum of three (3) repeaters may be used per link). Total maximum length including boosters: 8000 ft (2400 m).
3. LT-1 Link Termination Assembly (not included)
7.75 inch height X 5 inch length X 2.5 inch width
