> Moore mod 65 sq. root extractor - pneumatic controller

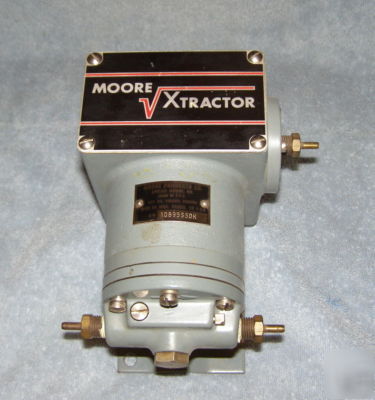

Moore mod 65 sq. root extractor - pneumatic controller
- Linear signals from flow transmitters affords control circuit design flexibility
- Powder coating provides improved corrosion resistance
The Model 65 Square Root Extractor uses the cosine function of a small angle to convert square root-related input signals to linear output signals. Its most common use is in linearizing signals from differential pressure-type flow transmitters whenever:
- Several rate-of-flow signals are added, subtracted, or averaged
- Maximum readability and control rangeability are required
- Linear flow-rate signals are needed to provide proper characterization in open-loop or multiple-loop control systems
- Linearized flow-rate signals are required in analog computing systems
Input/Output Range: 3 to 15 psig
Input Overrange Limit: 30 psig
0.5% of span (maximum deviation of output from theoretical output values from 10% to 100% flow)
