> New jet 10" left tilt arbor table saw w/ fence 708662K
New jet 10" left tilt arbor table saw w/ fence 708662K

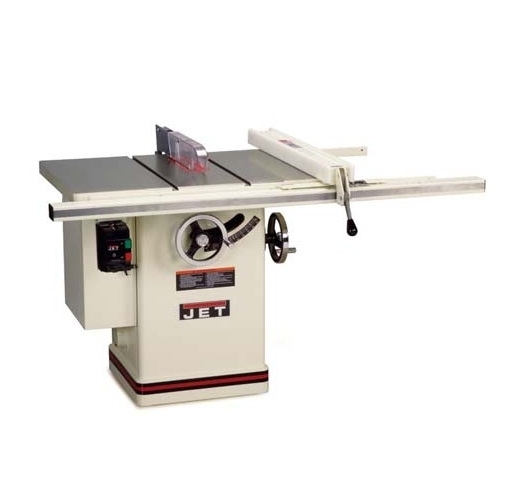

JET JTAS-10XL30-1, 10" Left Tilt Arbor XACTA Table Saw W/ 30" XACTA Fence II
* Exclusive 30" commercial XACTA Fence II with T-square design and HDPE side boards
* Cast-iron wings to increase work surface and support area
* Powerful 3 HP, 1 phase motor makes even the toughest cutting jobs a breeze
* Three matched V-belt delivers full power to the blade
* Rail-mounted magnetic switch is easy to reach and provides overload protection
* One-piece closed stand channels dust through a 4" port for fast, clean dust collection
* Hinged motor cover on cabinet gives quick access to the motor and belts
* Large, heavy-duty hand wheels help you make precise adjustments with less effort
* See-through blade guard with splitter and anti-kickback pawls helps protect the operator while giving a clear view of the material being cut
* Miter gauge with adjustable positive stops for accurate mitering
* Precision-ground high luster cast-iron table tops with front edge bevel for hassle-free work piece positioning
* Left tilt, wide stance heavy-duty trunnion for stability and smooth blade positioning
* Built-in 4" port for dust collection
Motor 3 HP; 1 Ph 230V Blade Diameter 10" Arbor Diameter 5/8" Arbor Speed 4,200 RPM Maximum Depth of Cut 3" Maximum Depth Of Cut (at 45 Degrees) 2-1/8" Maximum Diameter Of Dado 8" Table Size (w/ Extension) 27" x 40" (L x W) Table Size (w/o Extension) 27" x 20" (L x W) Dust Collection Minimum CFM Required 350 CFM Dust Port Diameter 4" Maximum Rip Right of Blade 30" Table Height 34" Table In Front Of Saw Blade At Maximum Depth Of Cut 12" Maximum Rip Left of Blade 12" Table Type Cast-Iron Motor Amperage 14.5 AMP Net Weight 528 lbs. Maximum Width of Dado 13/16"
* 10" Left Tilt Arbor XACTA Table Saw - 708662K
