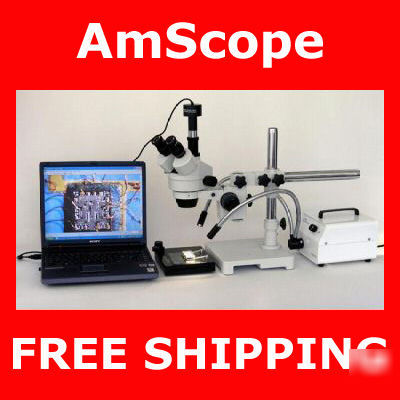

3.5-90X trinocular boom microscope, light, ccd camera
Brand Name: AmScope Model No: SM-3TZ-FOD-GT-M Retail Value: $4,000
* A wonderful convenient turnkey package with color digital image system
* Trinocular zoom microscope with a high quality digital camera
* 1.3 Mega (1280x1024) pixel high resolution clear images
* User-friendly software included
* Capturing microscope images and displaying real-time video on your PC screen
* Editing, saving and emailing microscope images on your computer
* Measuring length, angle, area and etc. across microscope images
* Reduction lens giving the same view on your PC screen as that seen through eyepieces
* Easy USB connection, installation and operation
* Gliding table offering a hand-free inspection process
* Placing samples on the table and move them in X, Y direction or both directions simultaneously
* 3.5x-90x extremely large zoom continuous magnification range
* Versatile single-arm boom stand covering large working area
* SUPER widefield 30mm WF10X/20 eyepieces (10X power with 20mm field of view - see the difference in the above picture)
* Extremely large working distance up to 8" (200mm)
* Sturdy cast metal boom stand finished with stain-resistant enamel
* 110V, 150W variable-Intensity fiber optic light source
* Manufactured under strict ISO 9001 quality control system
* Eyepiece: 30mm super widefield high-eyepoint WF10X eyepieces with 20mm field of view
* Auxiliary Objective Lens: 0.5X & 2.0X
* Working Distance: up to 8" (200mm)
* Boom Stand: 16" single-arm (overall length: 24"), 17" high pillar, 9"x9"x1-3/4" solid cast steel base
* Fiber Optic Light Source: 21V,150W halogen bulb
* Package: 2 (35 lbs & 30 lbs)
* One Pair of Super Widefield High-Eyepoint 10X Eyepieces
* One Dual Gooseneck Fiber Optical Light
* One 1.3 Megapixel USB Digital Camera
* One CD with Software, Driver and Step-byStep Instructions
15X Super Widefield Eyepieces for Exten-ding Magnification Power Up to 135X
1.0X Barlow Lens for Lens Protection
23mm Port Video Cameras For TV Display
CCD Video Cameras For TV Display
