ICD2 programmer debugger for microchip pic mplab ide

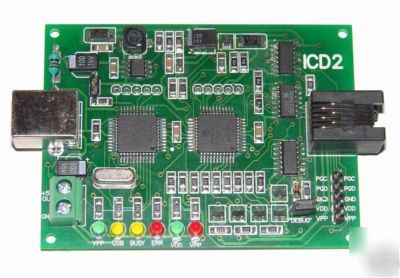

Click for view in large resolution ICD2 - top side.
Click for view in large resolution ICD2 - USB connector, +5V power output
Click for view in large resolution ICD2 - LEDs
Click for view in large resolution ICD2 - ICSP connectors
PIC ICD2 USB programmer&debugger 100% compatible with MPLAB IDE
ICD2 debugger&programmer for be used with Microchip MPLAB IDE to work on PIC microcontrollers just using your own circuit and the ICD2 interface or the available programmer extension (not included).
ICD2 programmer is fully compatible with wide range of prototype boards (for example PIC-P18, PIC-P28, PIC-P40)
* Real-time code runing and steping
* In-circuit programming and debugging (ICSP)
* USB interface and powered from USB.
* Works with chips in +3V..+5V voltage range
* Automaticaly VPP regulation from MPLAB
* Works under Microsoft Windows 98/Me/NT/2000/XP/VISTA/Seven.
* two ICSP connectors: standard from 6P6C and 5-pins one row connector
* +5V 100mA power supply (from USB) output - green power supply connector
* LED of USB communication USB (yellow)
* ISP VDD (green) - light if VDD on target board is powered
* size 80 60mm (3.15"x2.36")
