Kramer vs-41HD 4X1:2 hd-sdi sdi digital video switcher
Manufacturer: Kramer Electronics Model/Part #: VS-41HD

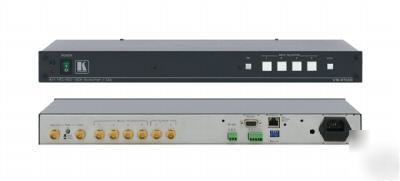

Kramer VS-41HD 4x1:2 HD-SDI SDI Digital Video Switcher
The VS-41HD is a high performance switcher for SDI (SMPTE 259M and SMPTE 344M) and HD-SDI (SMPTE 292M) digital video signals that enables the distribution of the four inputs to two identical outputs.
Maximum Data Rate - 1.485 Gbps.
Reclocking & Equalization - Automatic.
Active Input Indication Reporting - Each input button on the front panel automatically lights up when the unit detects a video signal on that input. Green indicates a standard definition (SDI) input signal and blue indicates a high definition (HD-SDI) input signal.
Flexible Control Options - Front Panel, RS-232 (K-Router Windows -based software is included), RS-485, Ethernet, contract closure & IR Remote (included).
Input and output signals on BNC connectors
Selectable Sync Signal Termination.
Vertical Interval Switching - SMPTE RP-168.
Worldwide Power - 100-240VAC.
