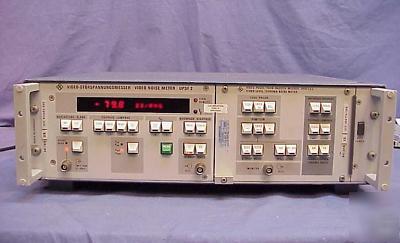

Rhode & schwarz UPSF2 video noise meter 40HZ-10MHZ
This item has been TESTED by our Lab Technician and it works well.
either in the un-weighted mode from 40 Hz to 10 MHz or in the weighted mode with the appropriate filters
The relevant IEC and CCIR specifications are satisfied.
* Instrument to determine noise voltage, weighted and un-weighted
* Automatic switch-over for 525-line or 625-line systems
* Measurements are available in full-field or any test line with automatic or manual ranging and true RMS
* Full field, spot, and line measurements in accordance with IEEE and CCIR
Frequency Range: 40 Hz to 10 MHz
Operating Modes: Full field and test line, internal or external synchronization
Measurement Range: 0 dB to -90 dB
Test Signal: Picture or composite video signal with or without test lines, 525 or 625 lines with
Rectification: True RMS or peak-response measurement
Readout : Digital, 1 dB maximum error
