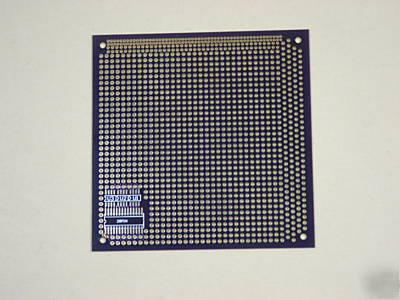

Two-side phottotype pcb board smd ic chips 44 32 28 8 p
PCB board Phototype two-sided PCB experiment board
These section of experimental board (might install SMD and other parts) is you have provided an electronic circuit design, the experiment, the innovation ideal platform.
100mm 100mm 1.08mm(3.95 inch 3.95 inch 0.042 inch)
2.54mm(0.1inch), plated-through holes 1159,136 assume 60 the arrangement
2.03mm(0.08inch), plated-through holes40x2
1.52mm(0.06inch), plated-through holes40x2
tis can be soldered on SMD and other components, it is very convinent for research and experienments pruposes.
Size: 100mm 100mm 1.08mm(3.95 inch 3.95 inch 0.042 inch)
Pitch: 2.54mm(0.1inch) holes: total 1159 ,136 of 1159 are on 60;
Pitch: 2.03mm(0.08inch) holes: 40 2
Pitch: 1.52mm(0.06inch) Holes: 53 2
IC (DIP):44P 1, 32P 1 28P 1 8P 3
