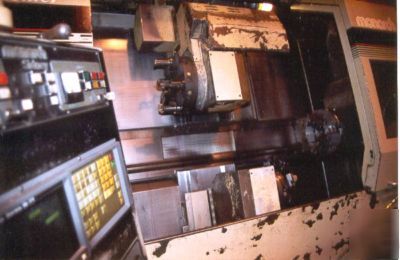

Monarch ultra-center cnc lathe
MAX. WORK DIA. W/STANDARD OD TOOL, Z1-AXIS 14.6"
MAX. WORK DIA. W/STANDARD OD TOOL, Z2-AXIS 12.6"
CENTER DISTANCE W/RIGHT HEADSTOCK - 72"
DISTANCE SPINDLE C/L TO BOTTOM OF BASE - 47.2"
SPINDLE SPEEDS - 63 TO 2300 RPM
AC SPINDLE DRIVE MOTOR RATING -
WORKING TRAVEL, BELOW SPINDLE C/L - .12"
WORKING TRAVEL, ABOVE SPINDLE C/L - 10"
WORKING TRAVEL, ABOVE SPINDLE C/L - .12"
WORKING TRAVEL, BELOW SPINDLE C/L - 9"
ZI & Z2 AXES (UPPER & LOWER CARRIAGES):
NUMBER OF LIVE TOOL POSITIONS - 12
MAX. BORING BAR DIAMETER - 1.25"
POWERED ROTARY TOOL SPEED RANGE - 0 TO 4000 RPM
POWERED ROTARY TOOL DRIVE MOTOR - 6.9 KW (9.3 HP)
POWER CHUCKING, LEFT & RIGHT HEADSTOCKS
