> New welding positioner wp-1 cnc 13" table 2" hole usa

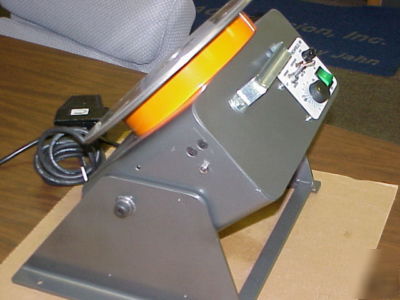

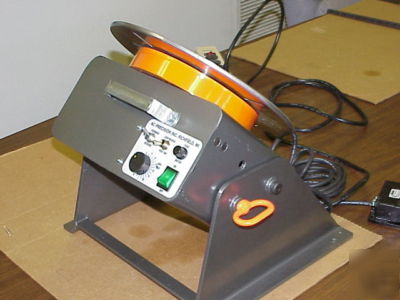

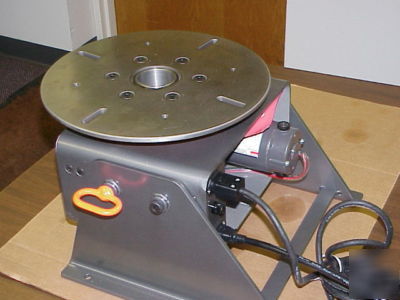

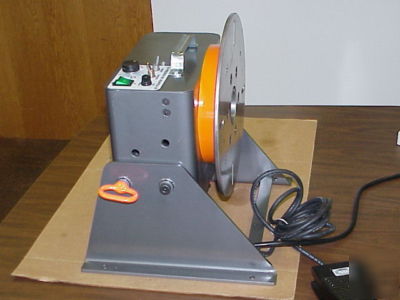

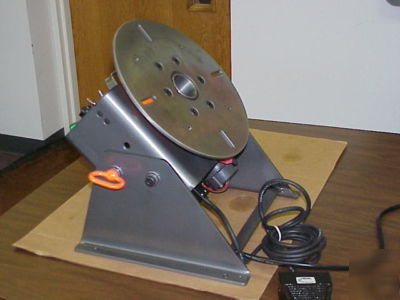

New welding positioner wp-1 cnc 13" table 2" hole usa
This is our most popular positioner, with the features, three position pin location 0-45-90.
with real people to contact for answers to questions. No sure what you want? Call us we can help. 1 (***) 628 8831 call for unlisted specials
We are midwestern Americans building honest good products for the American market.
This positioner is different in many good ways, here are some of our HUGE differences.
1. Tubular construction, this aligns the machined secondary gearing for long service.
2. Total 360 degree enclosure of the precision secondary gearing, this keeps weld spatter and fingers out of the pinch points.
3. Twin bearings, not one but TWO precision SEALED ball bearings, that distribute the load and still deliver smooth rotation.
4. We use our own "Constant Current Contact", for the ground connection. This spring loaded brass ground, follows the back side of the table, keeping the welding current out of the precision bearings.
5. Precision machined steel secondary gearing, no exposed belts or chains.
Here is the information sheet below.
Required power . 115 VOLT AC POWER
Weight capacity .. 100 # balanced/centered vertical,
50 # balanced at 90 degrees, 2 from C/L
Table 13 diameter with 3/8 slots, 5/16 thick, steel
10" diameter table with chuck units (optional)
Table tilt 0-45-90 Deg. pivot pin lock
Motor 90 volt PM DC motor 1/12 HP
Control ..SCR, High Frequency, tolerant control
Power on light, fused, Forward/Reverse toggle
Speed ranges offered WP-1-4, 0-4 RPM 102 lbs. inch torque
Ground current ..200 Amps DC direct table contact
STANDARD ITEMS INCLUDED: OPTIONAL ITEMS AVAILABLE:
HOLLOW SPINDLE 2 HOLE ARGON PURGE GAS ADAPTER
H.D. OFF/ON CAST IRON FOOT PEDAL SPEED WHEEL PRODUCTION CHUCK
H.D. TUBULAR CONSTRUCTION 8 3-JAW STANDARD CHUCK (uses 10 table)
DOUBLE SEALED MAIN BALL BEARINGS OVERSIZE 13 SLOTTED STEEL TOP
This positioner pin lock pivot design, and a 13 inch steel table, 10 inch table with chucks. This unit has a 2 inch center hole, cast iron foot pedal, double sealed twin ball bearings, enclosed gearing, and our unique Constant Current Contact, that is spring loaded for long life. Motor is available in, 0-4 RPM. Motor is a 90V DC PM gearmotor and control uses 115V AC power, insulated and isolated for H.F. TIG welding. Chuck options include a standard 8 3-jaw universal chuck or our Speed Wheel production chuck, both at extra cost.
Building of quality welding equipment since 1986
