Stepper motor 282 oz-in & bipolar driver combination

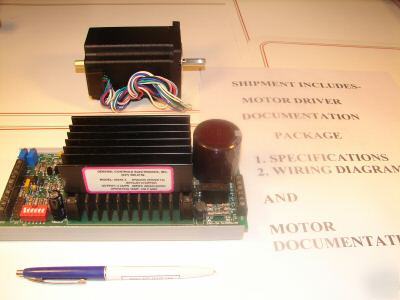

Brand New NEMA 23 282 oz-in stepper motor Includes documentation And a Used Chopper Bipolar Stepper motor driver
Bipolar series Volts=3.86, Amps=2.1, Ohms=1.84, Holding torque=2.0 Nm. 0r 282 oz-in
Bipolar parallel Volts=1.93, Amps=4.2, Ohms=.0.46 Holding torque= 2.0 Nm. or 282 oz-in
Unipolar Volts=2.76, Amps=3.0, Ohms=.92, Holding torque=1.4 Nm or 197 oz-in
Body Diameter= 56.2 mm or 2.25"
Used Dragon Driver with heat sink.
Up to 3 amps per phase, 2 phase driver
Input power 28 volt AC or DC up to 42 volts
Complete 6 pagemanual included
