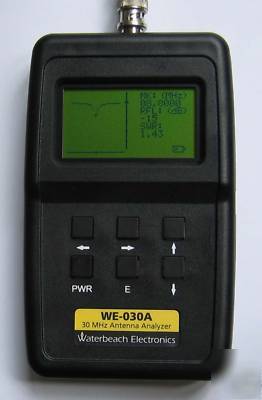

We-030A antenna analyzer
Small and simple to use, this antenna analyzer can speed and ease the tuning and adjustment of HF antennas. It measures the fundamental parameters SWR and return loss. Using marker functions, the resonance point of an antenna can be located quickly and accurately, and the antenna adjusted for best impedance match in a 50 ohm system.
By restricting functionality to essential basics, measurement speed is increased and product cost reduced.
A secondary RF level measurement mode is included for field strength indications etc.
300 kHz - 30 MHz frequency range
Fast graphical display of SWR and return loss
Multiple marker functions
Centre frequency and sweep width entered via keypad
Small size, light weight, portable
Battery charge status indicator
Battery charger included
PL259 to BNC adaptor included
Reflection Measurement Range:
Normal, Marker to frequency of minimum SWR, Centre frequency to Marker.
128 x 64 dots graphical LCD with backlight
155mm x 96mm x 30mm approx.
Royal Mail 'International Signed For' or Similar.
One year warranty under normal use, wear and tear excluded.
Warranty void if the analyzer has been tampered with.
Waterbeach Electronics Ltd
