48 channel digital i/o lines, counter, timer card
48 Channel Digital I/O Lines, Counter, Timer Card
48 Channel DIO & Counter Timer
* 48 TTL compatible Digital I/O Lines
* Three independent Counter Timers
* Timer Clock input programmable from four different sources
* On board 2MHz reference oscillator
* Programmable interrupt requests
* Dedicated external interrupt line
* Onboard wait-state generation

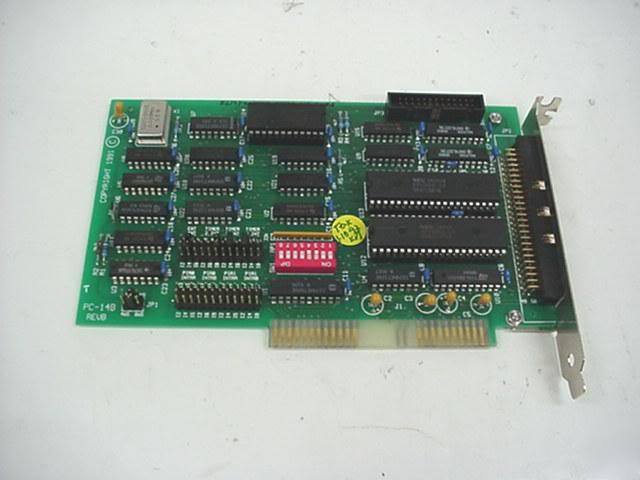

The PC-14B is a general purpose digital input/output board. It is built around two industry standard 8255 PPI devices and a three channel 8254 Counter Timer chip.
Application for the PC-14B include event counting, one-shot pulse generation, rate generation, event timing, strobe, frequency generation and external synchronization.
Some information may be found HERE
There are no accessories with this board.
