Automatic night switch - 12VDC security switch

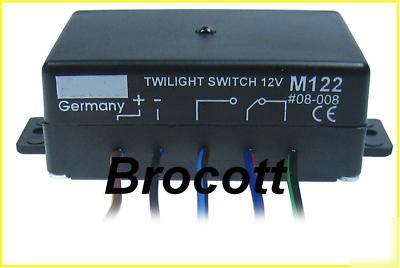

Electronic Automatic Daylight Switch - 12VDC
The twilight/daylight switch switches on e.g. lamps at nightfall and off again at daybreak. Operating voltage 12 VDC (ideal for home & business security)
Distribution output: relay 1 x change over, max. 3 ampere.
The sensitivity of the luminous intensity can be changed by partially covering the sensor mechanically. The built in switching relay has both 'Normally Open' & 'Normally Closed' contacts so that the module can be used for switching appliances on or off.
* Operating voltage: 12 V DC (11...14 V)
* Power consumption: approx. 2 mA / 35 mA (relay on / off)
* Relay contact: 1 x switch-over, loading capacity max. 25 V / 3 A
* Operating temperature range: approx. - 15...+ 50 degree C
* Luminous intensity switching-on: approx. 25 lux 20 %
* Luminous intensity switching-off: approx. 45 lux 20 %
* Switching delay: approx. 3...4 seconds
* Dimensions: approx. 72 x 50 x 30 mm
