Pacific 500 ton c frame press, pressformer ii, 32X56TBL

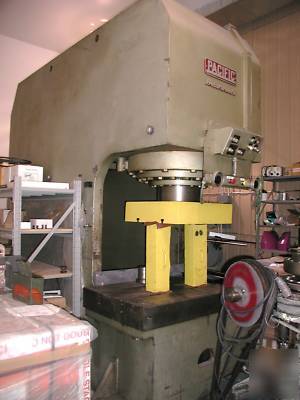

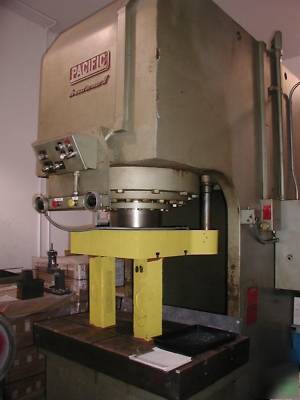

1-Used Pacific 500 Ton Single Cylinder C Frame Press
Punching Tonnage..........................................................330 Tons
Ram Size....................................................................... 26 x 26
Bed Size........................................................................ 56 x 32
Distance between Housings........................................... 38
Throat Depth................................................................. 18
Open Height.................................................................. 26
Closed Height................................................................ 14
Stroke............................................................................ 12
Advance Speed.............................................................. 182, 70, 24 IPM
Return Speed................................................................. 116, 43 IPM
Main Cylinder Size........................................................ 24 bore x 12 stroke
Main Motor.................................................................... 50 HP, 230/460V, 3 Ph
Dimensions.................................................................... 10 6 x 3 10 W x 14 H
Weight........................................................................... 53,000 Lbs
Pit Required................................................................... 20 deep x 10 6 L
High Speed Power Unit, Tonnage Control & Indicator, Provision for Future Water Cooled Oil Cooler, Palm Buttons & Keyed Switches, Electric Foot Pedal, Die Cushion. Additional Bolster & Platen Plates
Price FOB Orange City, IA........................................ $79,500.00
New Replacement cost is over $175,000.00
