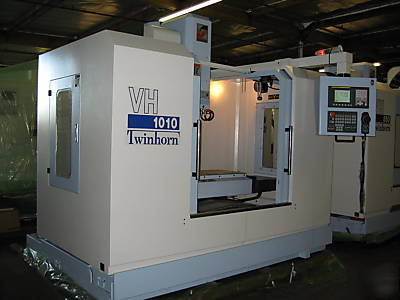

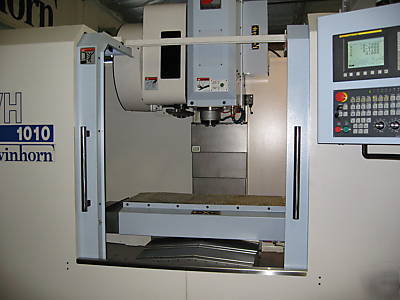

Twinhorn vh-1010 cnc vertical fanuc oi-mc control
Fanuc Oi-MC & 320 Meters Memory Fanuc 15 HP Spindle Motor
AC Digital Servo & Spindle Drivers Spindle CAT-40 with 8000 RPM

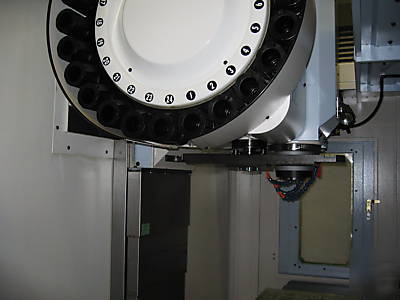

PCMCIA Slot for Memory Expansion Arm Type 24 Tool ATC
Helical Interpolation & Custom Macro B Pitch Error Compensation

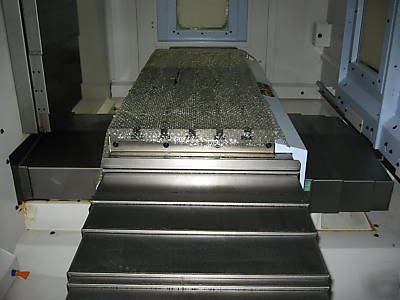

Hardened Ground Box Ways on X,Y & Z Auto Lubrication System
Meehanite Cast Iron Bed, Base & Headstock Fully Enclosed Splash Guard
Heat Exchanger for Electrical Cabinet Spindle Air Blast & Cutting Air Blast
Automatic Power off (M30) Spindle Air Curtain
Roll Out Coolant Tank & Chip Tray RS232 Interface
Fanuc Operating & Maintenance Manual Operating & Electrical Manuals
4th Axis Interface Cable only Ready Hand Held Coolant & Air Nozzle
One Year Machine Parts Warranty Two Year Control Warranty
Travel X Axis - 39.76 (1010mm)
Travel Y Axis - 19.69 (500mm)
Travel Z Axis - 20.47 (520mm)
Rapid Feed Rate X & Y Axis - 945ipm
Rapid Feed Rate Z Axis - 945ipm
Cutting Feed Rate - 315ipm (8000mm/min)
Positioning X, Y & Z Axis - 0.0001/12 (0.005mm / 300mm)
Repeatability X, Y & Z Axis - 0.0001 ( 0.003mm)
Table Dimension - 47.24 x 17.72 (1200mm x 450mm)
Maximum Loading - 990 lb (450Kg)
Spindle Motor - FANUC AC Spindle Motor iI 8 / 8000
Spindle Speed - 8000Rpm (Opt. 12000Rpm)
Servo Drive Motor X & Y Axis - Fanuc 12 / 3000is
Servo Drive Motor Z Axis - Fanuc 22 / 3000is
Distance from Spindle Nose to Table - 4.72 25.59 (120 650mm)
Distance from Spindle to Column - 21.26 (540mm)
ATC - Swing Arm Type Random, Shortest Path, Bi-Directional
Maximum Tool Weight - 15.4 lb (7.0kg)
Maximum Tool Length - 11.81 (300mm)
Maximum Tool Diameter - 3.14 (80mm)
Floor Space L x W x H - 99 x115 x106 (2508mmx2900mmx2700mm)
Power Requirement - 220V, 3 Phase, 60Hz, 30kVA, 75Amp
Machine Weight - 11,770 lb (5350 kg)
Spindle Speed 12000RPM (included Spindle Oil Refrigeration Unit)
Chain Type Chip Conveyor & Cart
Spindle Oil Refrigeration Unit
Coolant Through Spindle Without Extra Tank & 300PSI Pump
Coolant Through Spindle With Filter System, Extra Tank & 300PSI Pump
4th Axis Interface with Servo Drive & Power/Signal Cable
4th Axis Complete with Manual Tailstock + Install (Tanshing VRNC-210)
