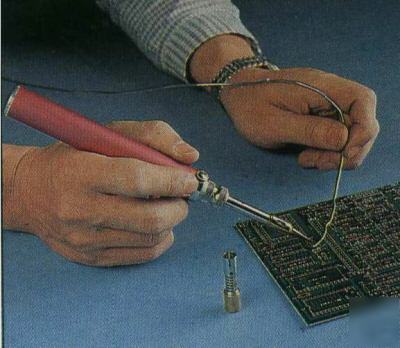

Soldering - a self-instruction manual - learn to solder
It is difficult to overemphasize the importance of good solder connections. Whether you are assembling a new piece of electronic equipment, repairing an existing piece of equipment, or just troubleshooting; soldering plays an important part. A sloppy solder connection can have drastic results on the operation of your equipment. Complete failure or improper operation can result if only one connection is defective. Just consider some of the serious problems that an improper solder connection can create. The quality color TV kit that you have paid hundreds of dollars for can be completely inoperative with just a single bad solder joint. A major space shot can be a complete failure because of a single poorly made solder connection. It might cost human lives, or the loss of a fantastic amount of time, money, and effort. Neither you nor anyone can afford such losses. If you have never soldered before, take the time now to learn this skill well. If you have soldered before, review the process anyway just to make sure you know the fundamentals. It is wasteful to make poor solder connections when you can make good ones in the same amount of time with no more effort. By perfecting your soldering skill, you can be sure of success in assembling electronic equipment that works. Good soldering will eliminate most of your assembly problems, and also the need for troubleshooting and repair. The lost time, expense, and frustration that you avoid will make it all worthwhile.
SOLDERING THEORY AND TECHNIQUES
* Experiment 1 - Learning how to solder wires to terminals
* Experiment 2 - Learning how to mount components on a circuit board
* Experiment 3 - Learning to "tack solder."
* Experiment 4 - Demonstrating how you should NOT solder to a circuit board
* Experiment 5 - Learning how to unsolder
* Experiment 6 - Assembling the test multivibrator circuit
The original book was scanned at a resolution of 300 dpi and converted into this digital file in Adobe Acrobat .pdf format.
In order to view this file you will need to have Adobe Acrobat Reader installed on your computer. If you do not have Adobe Acrobat Reader installed please follow this link to obtain a free copy:
