Digital thermometer with 2 k-type thermocouples sensors

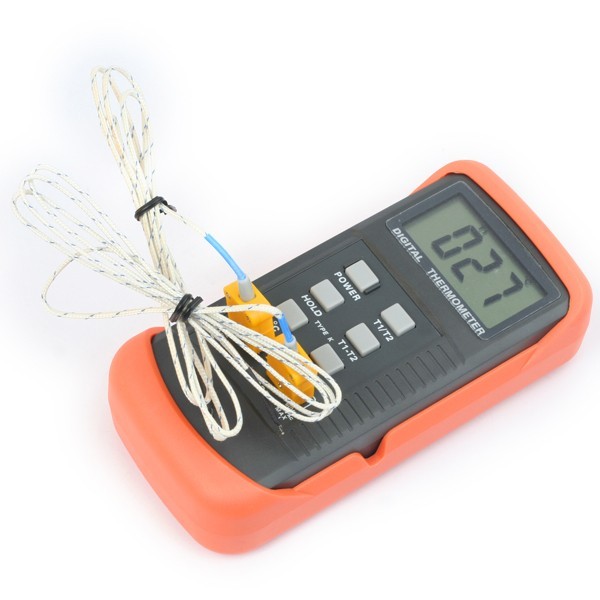

Digital Thermometer with 2 K-Type Thermocouples Sensors
This is a Two K-type model and is equipped with a Differential Temperature Measurement function. At the press of a button, the thermometer will display the difference in temperature between the two thermocouples this will be the temperature of thermocouple T1 minus the temperature of thermocouple T2.
The temperature indication follows the IEC 584 temperature/voltage tables for K-type thermocouples.
* Differential Temperature Measurement
* Select between Celsius and Fahrenheit
* Overload display alert when input exceeds measurement range
* Hold mode holds current reading and ceases taking other measurements
* Easily portable take it anywhere you need it
* Display: 3 digit liquid crystal display with maximum reading of 1999
* Power Current: approx DC 3mA (typical)
* Dimensions of Thermometer: 5.5 (w) x 11.5 (l) x 3 (d)cm (2.5 x 4.7 x 1 )
* Dimensions of Screen: 4 (w) x 2 (l)cm (1.6 x 0.8 )
* Length of Thermocouples: 95cm (37.5 )
* Probe measurements: 155 x 70 x 35mm - length x width x height)
* Weight (Including Battery): 190g
* Temperature Scale: Celsius or Fahrenheit
* Measurement range: -50 C to 1300 C (-58 F to 2372 F)
* Maximum insulation temperature: 260 C (500 F)
* Probe accuracy: 2.2 C or 0.75% of reading (whichever is greater) from 0 C to 800 C (32 F to 1472 F)
* 0.1 C (0.3%rdg +1 C) -50 C to 199.9 C
0.1 F (0.3%rdg +1 F) -58 F to 199.9 F
1 C (0.3%rdg +2 C) -50 C to 1200 C
1 C (0.6%rdg +2 C) 1200 C to 1300 C
1 F (0.3%rdg +2 C) -58 C to 1200 C
1 F (0.6%rdg +2 C) 1200 F to 1999 F
* Temperature Coefficient: 0.1 x the applicable accuracy spec per C from 0 C to 18 C and 28 C to 50 C (32 F to 64 F and 82 F to 122 F)
* Input Protection: 60V DC or 24V AC max input voltage on any combination of input pins
* Reading Rate: 2.5 times per second
* Input Connector: Accepts standard miniature thermocouple connectors
Brand new and Boxed. Includes:
