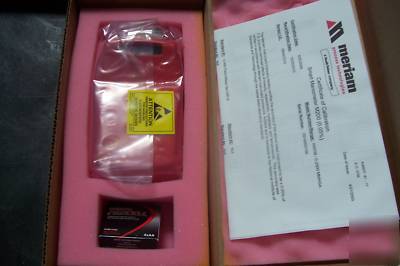

Meriam M200 0-2000MM hg absolute manometer M200-AI0038
M200 Smart Manometer: +/- 0.05% FS
AI0038 0 to 2000 mm Hg Absolute (0 to 38 PSIA) Precision Absolute Manometer
+/- 0.025% FS from 0 to 2000 mm Hg Absolute , Intrinsically Safe (cULus and ATEX)
Meriam s M2 Series Smart Manometers bring high precision and value to handheld, digital manometer users. The M2 features NIST traceable accuracy of 0.025% of F.S., independent of temperature effect. Pressure ranges from 28 H2O F.S. to 2000 PSIG F.S. are available.
M2 pressure sensors are available to measure gauge, differential, absolute or vacuum pressure. The display can read out in any of eleven pressure units or can be linearly scaled for special user units. Differential models offer a square root flow function to display flow rate in user defined units. An adjustable damping feature minimizes the effects of pulsating pressures. A Min/Max function captures the extremes of pulsating or varying pressure signals and a Hold function can freeze the display at any point of interest. Auto Record documents up to 240 readings for future recall.
0.025% FS. No temperature effect from 23 to 122 F (-5 to +50 C).
Optional Intrinsically Safe per ATEX and cULus
Inches of H2O (select 4 C, 20 C, or 60 F), PSI, mm of Hg, inches of Hg, mBars, Bars, kPa, kg/cm2, cm of H2O and user selectable scaling.
AI: Isolated Gauge or Absolute sensor for fluids compatible with 316L SS.
Twice range on Absolute (AI) unit. Twice range on Differential (DN) units when pressurized on high side only and 150 PSI (10.5 Kg/cm2) static when applied to both sides of the sensor simultaneously.
Allows users to view Min/Max pressure values and calculates leak rate per minute in pressure units. The feature is very handy when troubleshooting or pressure testing pneumatic systems.
Document up to 240 readings (automatically or manually) to reduce paperwork and field time. Saved readings can be recalled at any time.
Exponential damping with user selectable time constant from 0.1 to 25 seconds.
Capture speed is equal to the selected damping rate.
The M2 series can be recalibrated in the field for zero, span, and linearity. The user has the option to select a 1 point or 5 point calibration procedure. Enables users with accurate primary standards to calibrate their devices locally if desired.
User selectable shut-off. Programmable at 10, 20, 30, 45, 60 minutes.
