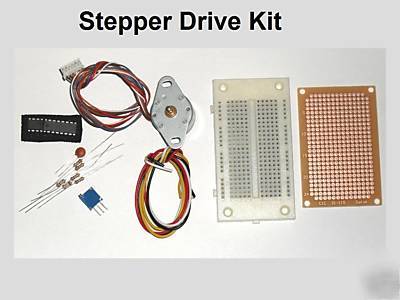

Unipolar stepper motor and drive kit step driver
Based on IC MC3479 circuit. The circuit described in the instructions supplied will drive the supplied step motor.
Control: step size, speed, direction CW/CCW
Solderless breadboard (with sticky back) and hookup wire.
Prototyping board 356 hole (in case you like what you build)
Step Motor: DC 5V-9V stepper motor. Dual coil center tapped. 100 ohm coil 7.5 degrees / step,
.1" diameter shaft is .35" long with .08" diameter 6 wire leads 12" long.
This is an intermediate level kit requiring previous knowledge of circuitry.
