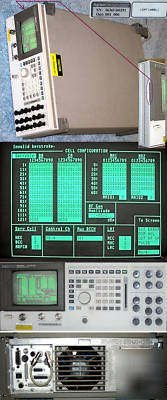

Hp 8922M~8922/1/6 10 mhz-1GHZ test set. does everything
RF Gen. 10 MHz - 1 GHz. Res 1 Hz. Accuracy +/- .5Hz
006 Makes It A Spectrum Analyzer 10 MHz - 1 GHz
001 Incorporates High Stability Time Base
Reverse Power Protected 15 Watts Continuous
It Can Make Itself Into An Oscilloscope
If Can Be A Audio Analyzer 20 Hz to 400 kHz.
It Can Be A Audio Generator DC to 25 kHz
Acts As AC Voltmeter. 3 dB BW: 2 Hz - 100 kHz
Acts As DC 100 mV to 42 V Voltmeter
Distortion Analyzer 1 kHz 5 Hz. 30 mVrms to 30 Vrms
Remote Programming GPIB. 14 Modes/Functions
Printer Supported By 3 Wire RJ-11 RS232 Serial
Power 100, 120, 220, 240 VAC, 48 to 440 Hz,
10% of line voltage, maximum 450 VA.
Many More Specialty Functions For Cell Phone Systems
External Ref: 13, 10, 5, 2 or 1 MHz, 30 ppm.
10 And 13 MHz Ref Outputs On Rear Panel
FM AM GMSK And Pulse Modulation
Many More Specifications Available On The Internet
This unit is in very nice physical condition.
The slice of plastic missing is barely visible from the front.
