Agilent hp 8702D 6 ghz lightwave component analyzer

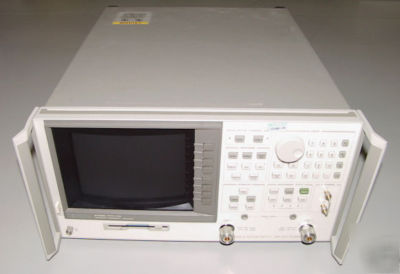

HP\Agilent 8702D 6 GHz Lightwave Component Analyzer
Lightwave transmission systems require accurate and repeatable characterization of their electro-optical, electrical, and optical components to guarantee high speed performance. The Agilent 8702D Lightwave Component Analyzer improves the design and specification of these lightwave components. It operates by analyzing a swept frequency signal modulating a 1300 or 1550 nm optical carrier.
This unit has the following featuers:
* Characterize components to high bandwidths with modulation frequencies to 6 GHz
* Isolate laser and photodiode response with calibrated transmitter and receiver measurements
* Accurately measure electrical return loss of photo diodes, lasers, connectors, and other lightwave components
* Measure the swept frequency response of modulation second and third harmonics
* Locate reflections and view step response with distance/time domain measurements
* Built-in S-Parameter test set
* 006 - 6 GHz Frequency Extension
