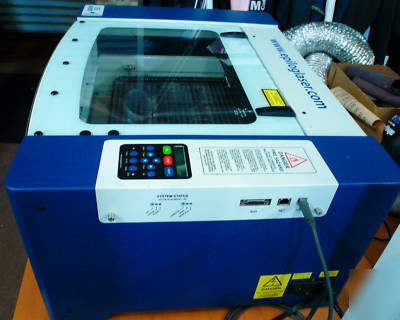

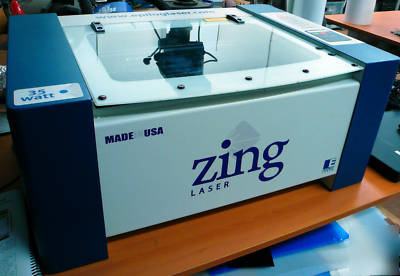

Epilog zing 16 35 watt slightly used cutter engraver
More info at http:// /zing_series.htm
Technical Specifications of the Zing Starter Series
State-of-the-art, digitally controlled, air-cooled CO2 laser tubes are fully modular, permanently aligned and field replaceable.
Store unlimited files up to 64 MB. Rolling buffer allows files of any size to be engraved.
Attach an air compressor to our included Air Assist to remove heat and combustible gasses from the cutting surface by directing a constant stream of compressed air across the cutting surface.
The Laser Dashboard controls your Epilog Laser's settings from a wide range of software packages - from design programs to spreadsheet applications to CAD drawing packages
Since the laser beam is invisible, the Red Dot Pointer on Epilog's Zing Laser allows you to have a visual reference for locating where the laser will fire
When engraving items that are not easily placed at the top corner of the laser, you can set a new home position by hand with the convenient Moveable Home Position feature on the Zing Laser.
Optimized raster, vector or combined modes
High-speed, continuous-loop, micro-stepper motors using linear and rotary encoder technology for precise positioning. (Brushless servomotors in the 36EXT.)
Shielded Roller Bearing Assembly on a Ceramic Coated Aluminum Guide Rail
User controlled from 100 to 1000 dpi
Computer or manually control speed and power in 1% increments to 100%. Vector color mapping links speed, power and focus to any RGB color.
10 Base-T Ethernet or USB Connection. Compatible with Windows XP/Vista/7
Auto-switching power supply accommodates 110 to 240 volts, 50 or 60 Hz, single phase, 15 amp AC.
External exhaust to the outside is required. There is one output port, 4" in diameter.
