Rsr electronics analog/digital trainer pad-234A (ch)

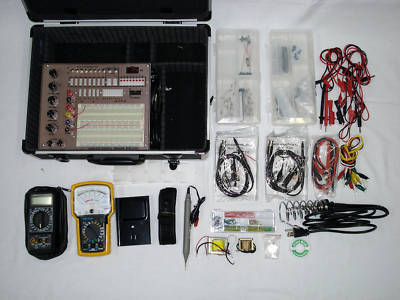

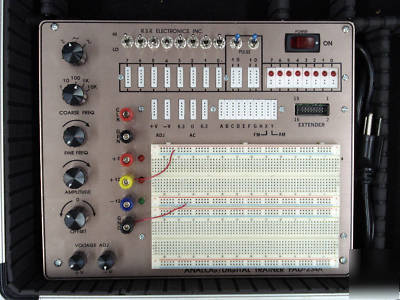

The PAD-234 Digital/Analog Trainer is a complete portable work-station. It is designed to allow you to quickly build, modify, and troubleshoot all sorts of analog and digital circuits. Its built-in power supplies, signal sources, and I/O features can save hundreds of dollars when compared to using separate pieces of lab equipment. For expanded capability the supplies, signals, and I/O, along with uncommitted lines, are available at a built-in IDC connector to allow ribbon cable connection to other boards, devices, or pieces of equipment.
The PAD-234 is a rugged, high-quality piece of equipment designed for years of use with minimal maintenance. It's functionality and low cost make the PAD-234 a cost-effective design tool for hobbyists and professionals. The same features make it the ideal educational tool for student use. The modular design of the PAD-234 allows it to be incorporated in kit form into progressive quarters of a school's instructional program.
* +/- 12V Fixed Power Supplies
* +/- 15V Variable Power Supplies
* Output current 1 AMP DC each
* Sine, square and triangular buffered outputs
* Amplitude 10V p-p output 5 frequency ranges 1-100KHz
* 8 SPDT toggle switches 0-5V
* 2 debounced momentary switches 0-5V
* Normally Hi and normally Lo levels both available
* TTL level clock slaved to generator: 0-5V, risetime < 400nsec
* 2 breadboards, each with 840 plug-in tie points
* Option to make breadboard moveable.
* Power supplies, function generator, and digital I/O available at built-in IDC connector

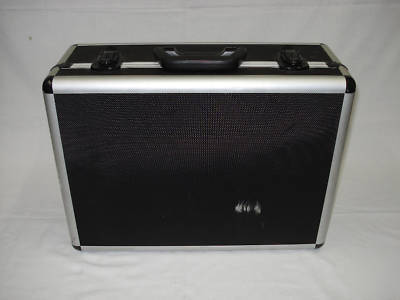

* High-impact plastic carrying case
* 3-wire fuse-protected line cord
* 5-way binding posts for power supplies and generator
* Input voltage 110VAC 50 60 cycles
Returns will only be accepted for seven days after receipt of the item(s). Refunds will only be given if the item(s) are proven to be grossly misrepresented, broken, not working, or not as described. If a return is accepted, the item(s) must be returned with or in the original packaging and with any accessories or extra parts (if any) that were included in the original sale. If the item(s) is returned and is found to have been accurately represented and in full working order, a 15% restocking fee will be deducted from the refund amount.
