#mp-3K sip bridge-type precision jig borer #25505

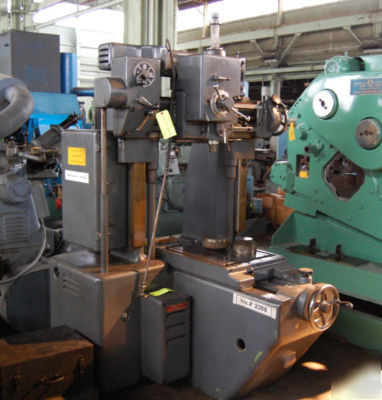

#MP-3K SIP BRIDGE-TYPE PRECISION JIG BORER
New 1972, Serial No 5905, Model MP-3K
Boring Capacity w/#C2E Tool Holder..... 4"
Drilling Capacity, Mild Steel.......... 1"
Drilling Capacity, Cast Iron........... 1.2"
Table Working Surface,................. 25.5" x 18.5"
Table Longitudinal Travel (X-Axis)..... 18"
Saddle Cross Travel (Y-Axis)........... 14"
Cross-Rail Vertical Travel (Z-Axis).... 18"
Spindle Quill Travel................... 6"
Spindle-Nose to Table, Maximum......... 24.5"
Spindle Internal Taper................. #2 MT
Spindle External Taper................. #2E "SIP"
(8) Spindle Speeds, Range.............. 75 to 2000 RPM
(6) Power Spindle Feeds, Range......... .0008 to .007 IPR
Measuring Reading on Auxilliary Scales .100"
Measuring Reading on Micrometer Drums.. .0005"
Measuring Reading on Micro Drum Vernier .00005"
Main Drive Motor, Horsepower/RPM....... 1.5 HP
Cross-Rail Traverse Motor, Horsepower.. 1/4 HP
Overall Dimensions, W x D.............. 5' x 5'8"
Overall Height......................... 7'4"
Weight, Approximately.................. 5000 LBS
PRICE: F.O.B. OUR WAREHOUSE........... $4,950.00
