2003 franklin Q80M-36 log skidder

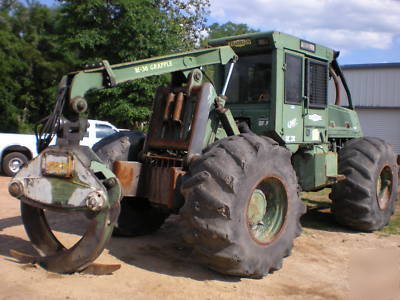

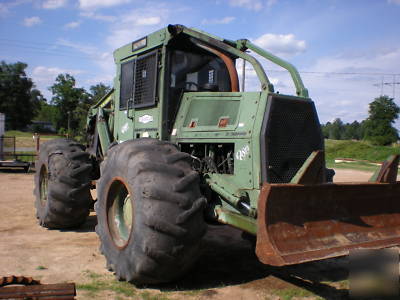

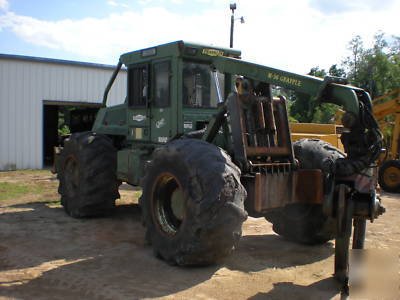

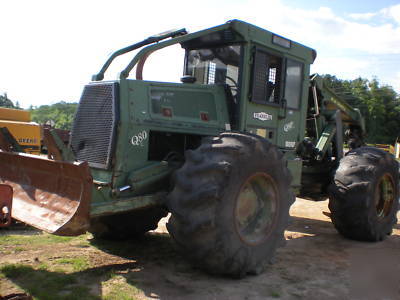

2003 Franklin Q80M - 36 Log Skidder
Located: Douglas, GA 31533 Inspection Welcomed ( (***)-383-4472 ) Mark
Delivery Available email fro a freight quote.
Ask any questions prior to submitting an offer.
This Log Skidder runs and works and is in good condition for a 2003 Year model.
Has a couple of small hydraulic leaks, Hose or Oring.
1 tire will need replaced soon.

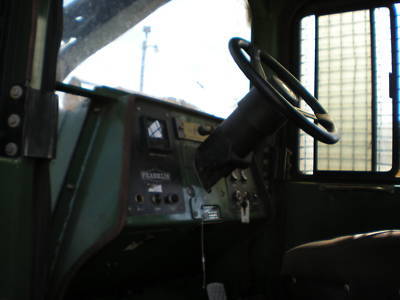

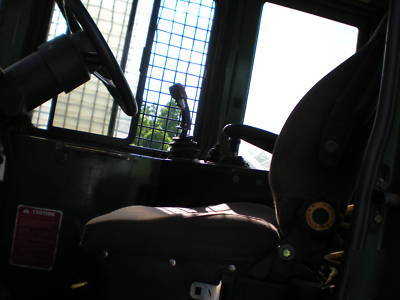

Interior is in average condition.
Have questions or need additional pictures or freight quote just email or call.
This item is for sale locally we reserve the right to withdraw this item.
Posted below are manufacturers specs for this model:
* Transmission: Franklin P6-410, 6 speed powershift
* Torque Converter: Clark 13.7 Inch
* Axles: Franklin F-375 Heavy Duty Planetary
* Differentials: Limited Slip Front and Rear
* Brakes, Service: Enclosed multi-disc wet brake
* Brakes, Parking: Spring applied, Hydraulic released
* Franklin FH-34 (34,000 lbs.)(15,420 kg)
* Standard - Franklin M31A Single Arch Grapple Assembly
* Optional - Franklin M36A Single Arch Grapple Assembly
- Franklin M36 Dual Arch Grapple Assembly
* Standard 102 Inch opening sorting grapple (9 Sq Ft)
* Optional 103 Inch opening bunching grapple (9.5 Sq Ft)
- 115 Inch opening bunching grapple (11 Sq Ft)(M36A & M36 only)
- 120 Inch opening bunching grapple (13.1 Sq Ft)(M36A & M36 only)
* Center Section Oscillation
* Frame Articulation Angle: 42 degrees
* Frame Oscillation Angle: 20 degrees
* Optional Front Axle Oscillation
* Standard 30.5 x 32 16 ply LS2, Optional 67/34 x 32, 73/44 x 32
* With Standard 37,500 lbs. (17,045 kg) Equipment
* Franklin Gauge and Alarm Package
* Air Condition/Heater - Electronic Climate Controller
* Eight Halogen Lights - Top Mounted w/Lexan Protection
* Light Switches - Front, Rear, Side Independent
* Circuit Breaker/Fuse Panel on Swing Down Panel
* Electrical Disconnect Switch w/Reminder Light
* Centralized Remote Service (Grease) Points
* Centralized Ports to test Hydraulic Pressure
* Full Steering Wheel w/Adjustable Tilt, Telescoping Column
* Cushioned Steering Cylinders
* Piston-Load Sense Hydraulic System
* Two-Stage Dry Air Cleaner w/Turbo Pre Cleaner
* 12-Volt Electrical System (Parallel)
* Full Belly Pans & Hinged Bomb Bay Doors
* Hydraulic Dozer Blade w/sealed Pivot Pin Bushings
* Larger Capacity Radiator and Oil Cooler
* Grapple Boom Pivot Pins w/Sealed Carrier
* 71-Gallon Fuel Tank (side mounted)
* Deluxe Adjustable Cloth Suspension Seat w/Belts
* OPS, ROPS & FOPS Enclosed, Pressurized Modular Quad Cab
* Lexan Enclosure w/Sliding Side Windows & Front Wiper
* Shock Mounted Engine and Radiator
* Tapered Roller Bearing Center Section
