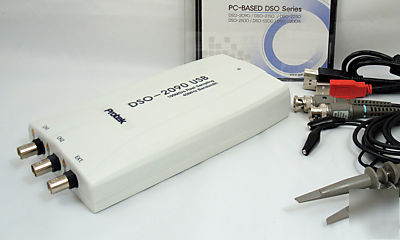

Pc based 40 mhz digital storage oscilloscope (dso-2090)
* Real Time Sampling Rate: 100MS/s
* Measurements via USB interface
* Includes Windows XP & Vista compatible software, Oscilloscope Probe Kit, USB cable and User Manual
* Maximum sampling rate: Realtime sampling 100MS/s
* Single shot bandwidth: 40MHz
* Voltage Range: 10mV ~ 5V/div @ 1 probe 100mV ~ 50V/div @ 10 probe 1V ~ 500V/div @ 100 probe 10V ~ 5000V/div @ 1000 probe
* Timebase Range: 4ns/div ~ 1h/div (1-2-4 sequence)
* Offset Level +/-4 Divisions
* Input protection: 35Vpk(DC + peak AC; Without external attenuation)
* Roll Mode: 1s/div ~ 1h/div
* Pre/Post Production: 0% ~ 100%
* Trigger TYPE: Edge trigger: Rising edge, Falling edge
* Trigger mode: Auto, normal, and single
* Settability: 0.03 div increments
* Trigger Level: +/-4 division
* Measurements: Vp-p, Vmax, Vmin, Vmeans, Vrms, Vamp, Vhigh, Vlow, positive overshoot, negative overshoot, cycle mean, cycle rms, period, frequency, positive pulse width, negative pulse width, rise time (10% ~ 90%) fall time (10% ~ 90%), positive duty cycle, negative duty cycle
* Cursor: Time/frequency difference, voltage difference
* Math: Addition, Subtraction, multiplication, Division
* FFT: Rectangular, Hanning, Hamming, Blackman Window
* Interface: Universal Serial Bus (USB)
* Power: No external source required Bus-powered from USB1.7W)
* Calibration Signal Output: 2V, 1kHz, Square Wave
* Vertical Position Variable: Yes
* File Management: Image save: .BMP, .JPG Data Save: .dso OLE (Object Linking and Embedding) automation: Data generation for Microsoft excel Setting save/load
* Print: Print in color/mono
