4" butterfly valve & actuator by bray w/ westlock indic

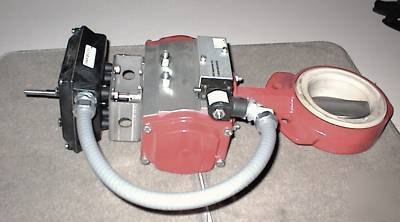

4" BUTTERFLY VALVE & ACTUATOR BY BRAY W/ WESTLOCK INDICATOR
WESTLOCK INDICATOR 2004 N BY 2A 2M02 00
MFG WEB SIGHT FOR DESCRIPTION OF PART NO.
http:// /ld/OrderGuide-Accu1040-2004%20%28FY09%29.pdf
POSITION SWITCH 2M02 TWO SPST MECHANICAL SWITCHES 8PT TERMINAL STRIP
CAST IRON BODY 316 SS DISC, SEAT EPDM
DIMENSIONS INDICATE ITS A 92 SERIES PLEASE SEE MFG'S WEB SITE FOR SPECS AND DISCRIPTION. PAGE 3 OF THE PDF.
LINK: http:// /docs/brochures/B-1032_en_S92-93_2008-08.pdf
AND A 120V 6W AIR SOLINOID IS MOUNTED TO THE ACTUATOR.
